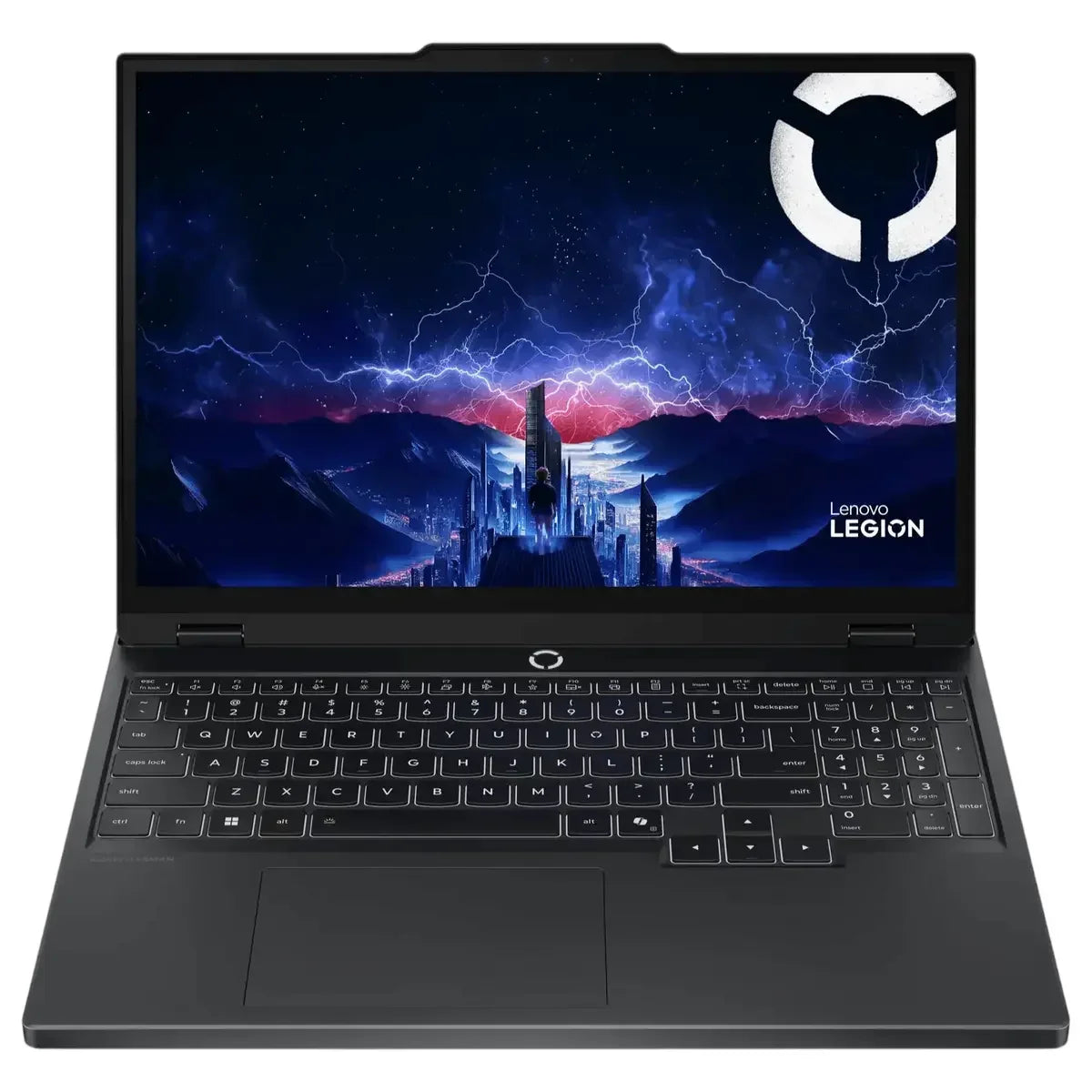

Lenovo Legion 5 15IAX10 Gaming Laptop, Intel Core Ultra 7 255HX Up to 5.2GHz, NVIDIA GeForce RTX 5060 8GB, 16GB DDR5-5600 RAM, 1TB PCIe 4.0 NVMe SSD, 15.1" WQXGA OLED 165Hz, Windows 11 Home, Eclipse Black, 83F00009US
Availability:
Warranty:
Brand: Lenovo
Categories:
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor:
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link:
Shipping
We offer fast and reliable shipping for all our items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
High-Performance Gaming and Creation: Push through heavy workloads with the Intel Core Ultra 7 255HX, built with 20 cores and up to 5.2GHz turbo for responsive gameplay and fast multitasking. Pairing it with the NVIDIA GeForce RTX 5060 8GB helps keep frame rates smooth while also supporting GPU-accelerated creative apps. With 16GB DDR5-5600 RAM and a 1TB PCIe 4.0 NVMe SSD, everyday loading and launching feels quick and effortless.
OLED Display Built for Immersion: Enjoy games, movies, and creative work on a 15.1" WQXGA (2560x1600) OLED panel that delivers deep contrast and vivid color. The 165Hz refresh rate keeps motion looking fluid, while 100% DCI-P3 coverage and factory color calibration help visuals look consistent. Dolby Vision and DisplayHDR True Black 600 add extra punch for supported content, making scenes feel more lifelike.
Windows 11 Home Experience: Get up and running quickly with Windows 11 Home (English) for gaming, productivity, and entertainment. Built-in support for modern apps and workflows makes it easy to switch between play and work. Office Trial plus Lenovo AI Now comes bundled to help you start right away with included software.
Connectivity and Ports for a Full Setup: Connect wirelessly with Wi-Fi 7 and Bluetooth 5.4 for fast networking and reliable peripherals. Plug into monitors and accessories using Thunderbolt 4/USB4, USB-C with DisplayPort 2.1, and HDMI 2.1 up to 8K/60Hz. Wired networking is also available through the 100/1000M RJ-45 port, making it easy to build a stable gaming or workstation setup.
RGB Keyboard and Privacy Controls: Light up your setup with the 24-Zone RGB backlit keyboard, designed to match your style while staying practical for late-night sessions. A 5.0MP camera supports clearer video calls, and the E-shutter gives you a simple way to control privacy. Firmware TPM 2.0 adds an extra layer of security support at the system level.
Product Specifications
Model: Lenovo Legion 5 15IAX10
Part Number: 83F00009US
Processor: Intel Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB Intel Smart Cache
AI PC Category: AI-Powered Gaming PC
NPU: Integrated Intel AI Boost, up to 13 TOPS
Graphics: NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
Chipset: Intel HM870 Chipset
Memory: 1x 16GB SODIMM DDR5-5600
Memory Slots: Two DDR5 SODIMM slots, dual-channel capable
Max Memory: Up to 32GB DDR5-5600 offering
Storage: 1TB SSD M.2 2242 PCIe 4.0x4 NVMe
Storage Slot: Two M.2 2280 PCIe 4.0 x4 slots
Max Storage Support: Up to two drives, 2x M.2 SSD; M.2 2242 SSD up to 1TB each
Optical: None
Card Reader: No Card Reader
Audio: High Definition (HD) Audio, Realtek ALC3287 codec
Speakers: Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Microphone: 2x, Array
Camera: 5.0MP with E-shutter
Battery: 80Wh
Power Adapter: 245W Slim Tip (3-pin)
Special Features: AI Chip: LA3
Display: 15.1" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision, DisplayHDR True Black 600
Touchscreen: None
Screen-to-Body Ratio: OLED models: 90% AAR (active area ratio)
Color Calibration: Factory Color Calibration
Pen: Pen Not Supported
Keyboard: 24-Zone RGB Backlit, English
Touchpad: Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120mm (2.95 x 4.72 inches)
Dimensions (WxDxH): 344.9 x 255.35 x 19.95-21.54mm (13.58 x 10.05 x 0.79-0.85 inches)
Weight: Starting at 1.9kg (4.19 lbs)
Case Color: Eclipse Black (with 24-Zone RGB Backlit Keyboard)
Case Material: Aluminium (Top), PC-ABS (Bottom)
Surface Treatment: Aluminium Stamping (Anodized with Sandblasting)
Operating System: Windows 11 Home, English
Bundled Software: Office Trial + Lenovo AI Now
Wireless: Wi-Fi 7, 802.11be 2x2 + BT5.4
WWAN: WWAN Not Supported
Ethernet: 100/1000M (RJ-45)
Ports: 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
Ports: 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 95-100W and DisplayPort 2.1
Ports: 1x USB-C (Thunderbolt 4 / USB4 40Gbps), with DisplayPort 2.1
Ports: 1x HDMI 2.1, up to 8K/60Hz
Ports: 1x Headphone / microphone combo jack (3.5mm)
Ports: 1x Ethernet (RJ-45)
Ports: 1x Slim tip Power connector
Docking: Various docking solutions supported via Thunderbolt / USB-C
Security Chip: Firmware TPM 2.0 Enabled
Fingerprint Reader: No Fingerprint Reader
Other Security: E-shutter
