Thermalright Core Matrix 360 Vision ARGB 360mm AIO Liquid CPU Cooler, 2-Inch 320x240 LCD Display, Aluminum Radiator, 3-Pin 5V ARGB, 4-Pin PWM, Black
Availability:
Warranty:
Brand: Thermalright
Categories:
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor:
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link:
Shipping
We offer fast and reliable shipping for all our items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features

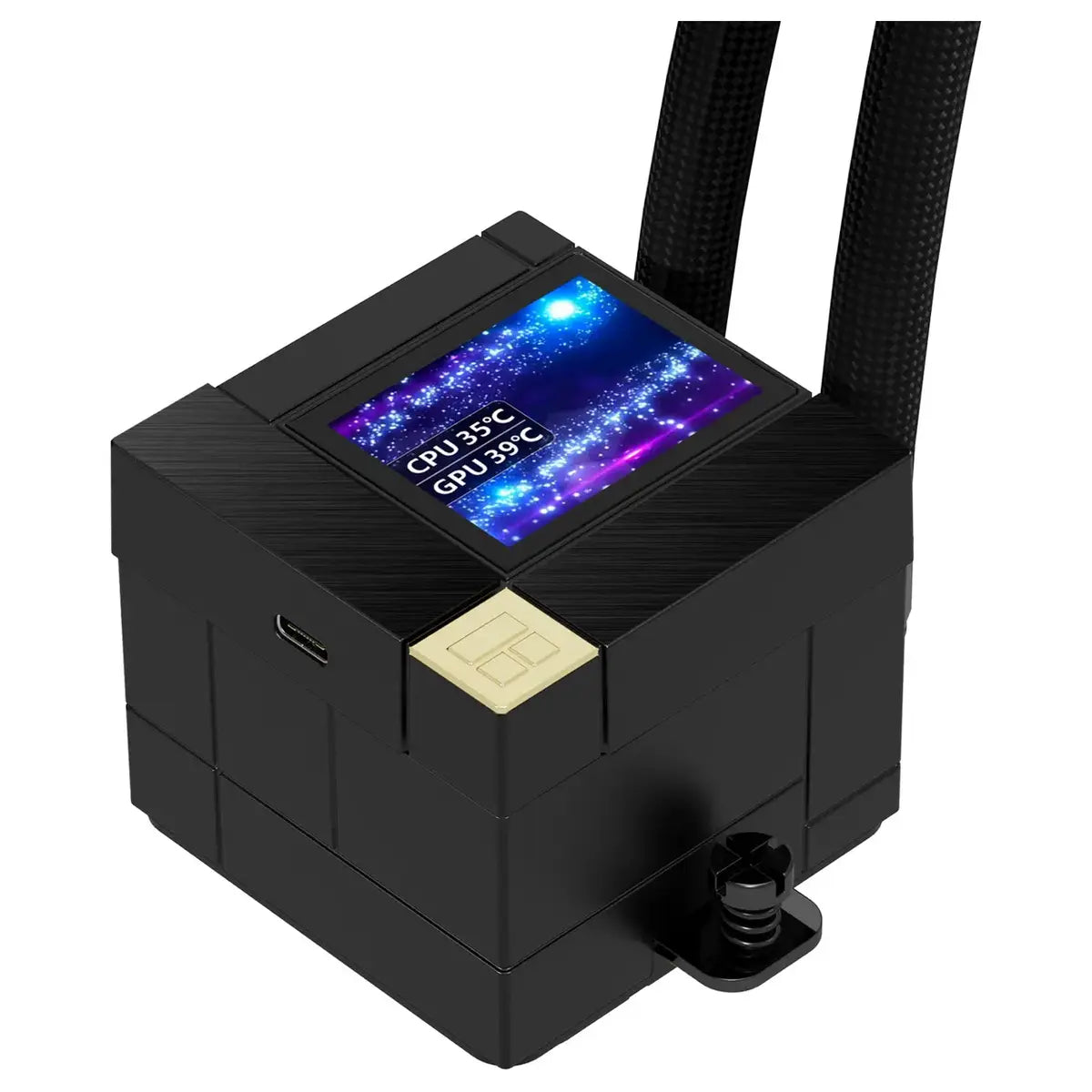

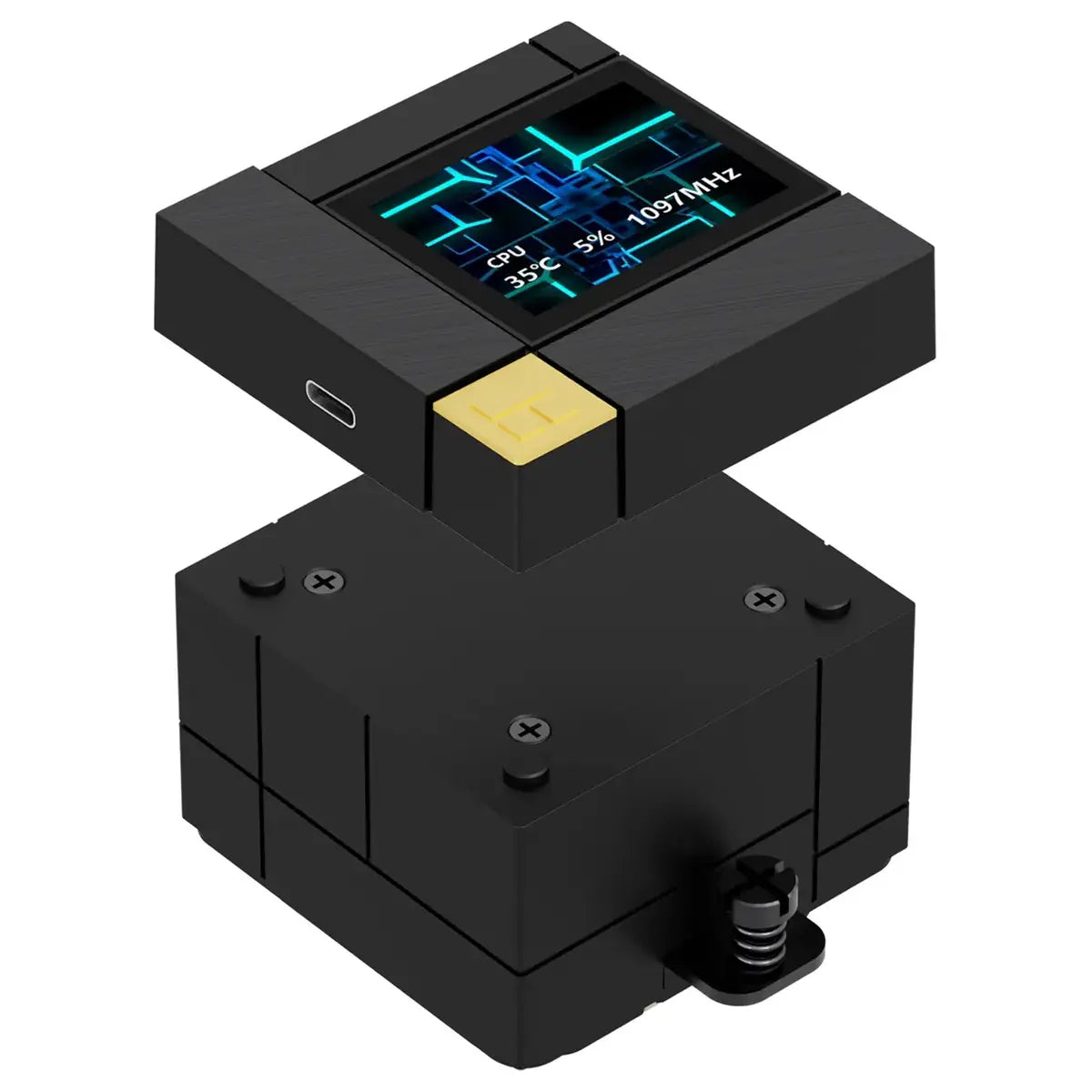

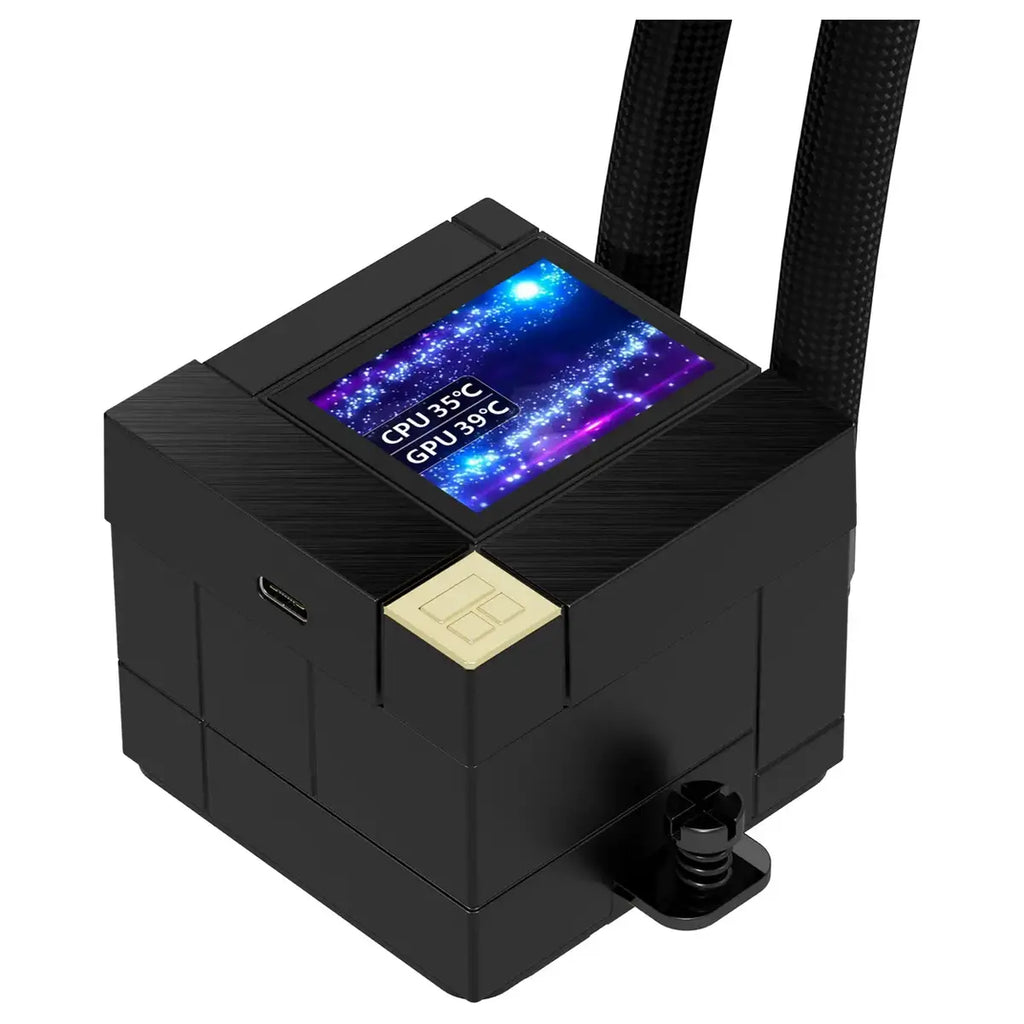

2-Inch LCD Display: Make your cooler part of the look of your PC with a built-in 2-Inch screen. The 320x240 resolution gives you a clear, compact display area that stands out through a case window. It adds a visual focal point right on the pump block, helping your build feel more personal. With the screen integrated into the cooler, you keep the setup tidy without adding extra hardware.
360mm AIO Liquid Cooling Design: Rely on a full-size 360mm AIO layout built around an aluminum radiator for consistent heat handling. The radiator size of 397x120x27mm provides a large surface area in a slim profile that fits many builds. This design helps move heat away from the CPU efficiently while keeping the system layout clean. It is a practical choice when you want strong cooling without the bulk of large air coolers.
PWM-Controlled Pump and Fans: Keep control simple with 4-Pin PWM connections for both the pump and the TL-M12Q fans. The pump runs on 12V DC and is built in a compact 67x67x64.4mm housing, keeping the CPU area neat. TL-M12Q fans reach up to 2000RPM max, letting you balance cooling and acoustics based on your needs. This makes it easy to tune performance for everyday use or heavier workloads.
ARGB Lighting Support: Match your system theme using ARGB support through a 3-Pin 5V ARGB connector. Lighting can be coordinated across compatible components for a unified look. Because ARGB is handled through a dedicated connector, setup stays straightforward and organized. It is an easy way to add color without complicating the build.
Product Specifications
Model: Core Matrix 360 Vision ARGB
Type: 360mm AIO Liquid CPU Cooler
Color: Black
Pump Dimensions: L67mm x W67mm x H64.4mm
Pump Rated Voltage: 12V DC
Pump Connector: 4 PIN PWM
Radiator Dimensions: L397mm x W120mm x H27mm
Radiator Material: Aluminum
Screen Size: 2-Inch
Screen Resolution: 320x240
Fan Model: TL-M12Q
Fan Dimensions: L124mm x W120mm x H25mm
Fan Rated Speed: 2000RPM plus or minus 10% (MAX)
Fan Noise Level: 28.2dBA (MAX)
Fan Air Flow: 68.9CFM (MAX)
Fan Air Pressure: 2.21mm H2O (MAX)
Fan Connector: 4 PIN PWM
ARGB Connector: 3 PIN 5V
Bearing Type: S-FDB Bearing
