TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+
  • TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+
  • TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+
  • TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+
  • TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+
  • TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+
  • TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+
  • TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+
TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+

TP-Link LS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+

Rs.7,500
Rs.7,500

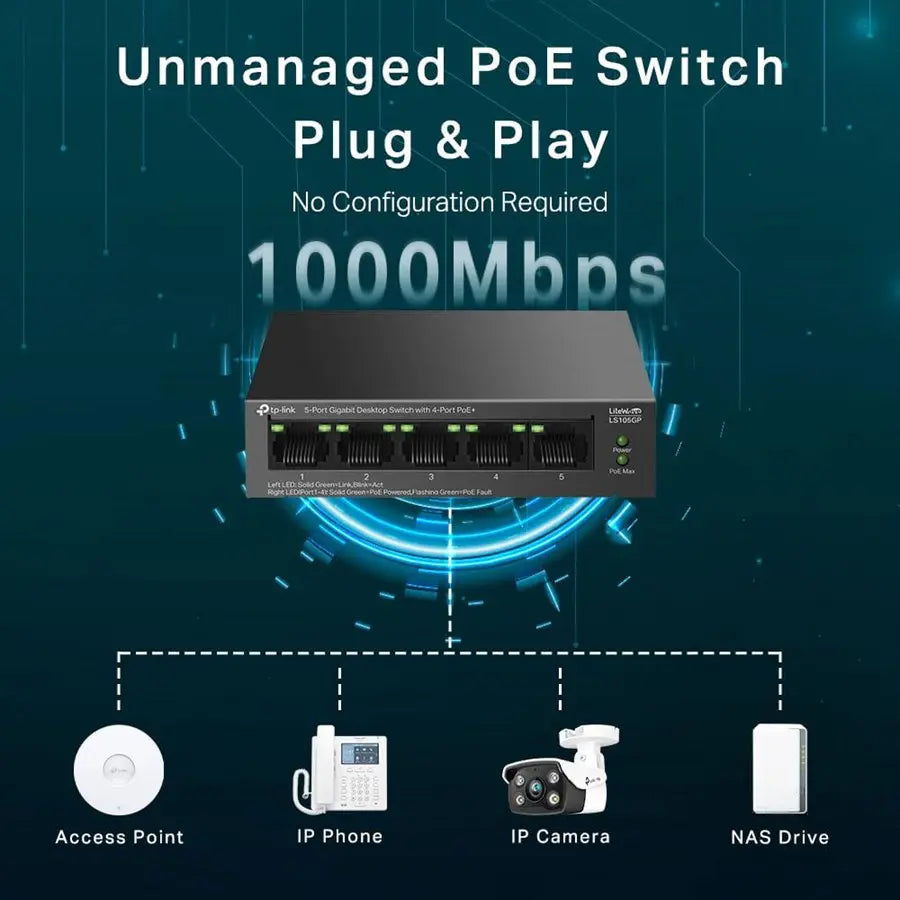

Power and connect cameras, access points, and IP phones with 4 PoE+ ports and a 65W PoE budget, all through a single cable. Keep setups simple with plug-and-play operation and a fanless design for silent use at home or in the office.
5x 10/100/1000Mbps RJ45 Ports, 10Gbps Switching Capacity
4x PoE+ Ports 802.3af/at, 65W Budget, Up To 30W Per Port
Extend Mode Up To 250m PoE Transmission Ports 1-2
Fanless Metal Casing, Desktop Or Wall Mounting

Availability: In Stock

Warranty: 1 - Year Warranty

Brand: TP-Link

Categories: Switches

Battery:

Curved:

Display Size:

Graphics:

Monitor Type:

Processor:

RAM Capacity:

Refresh Rate:

Resolution:

Series:

Storage:

Sync Technology:

Manufacturer's Link: https://www.tp-link.com/za/business-networking/litewave-switch/ls105gp/

Estimated delivery: 2 - 5 days across the country.

Shipping

We offer fast and reliable shipping for all our clothing items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
  • We do not accept returns under any circumstances.
  • We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
  • Opened or used items are not eligible for exchange.
  • Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.

Product Features

Delivers instant wired networking with a 5-port Gigabit Desktop Switch design and plug-and-play setup with no configuration required



Powers and connects PoE devices through 4x 802.3af/at-compliant PoE+ ports with a 65W PoE budget and up to 30W per PoE port

Extends PoE power supply and data transmission up to 250m using Extend Mode on Ports 1-2 for large-area surveillance deployments

Improves uptime with PoE Auto Recovery that automatically reboots dropped or unresponsive PoE-powered devices

Keeps noise down with a fanless design for silent operation while reducing power consumption

Fits different setups with a durable metal casing and desktop or wall-mounting installation options


Product Specifications

Model: LS105GP

Ports: 5x 10/100/1000Mbps RJ45 Ports

PoE: Ports 1-4 Support 802.3af/at PoE+, Up To 30W Per Port, 65W Power Supply

Switching Capacity: 10Gbps

Packet Forwarding Rate: 7.44Mpps

MAC Address Table: 2K

Jumbo Frame: 16KB

Transfer Method: Store-And-Forward

Interface Features: AUTO Negotiation, AUTO MDI/MDIX

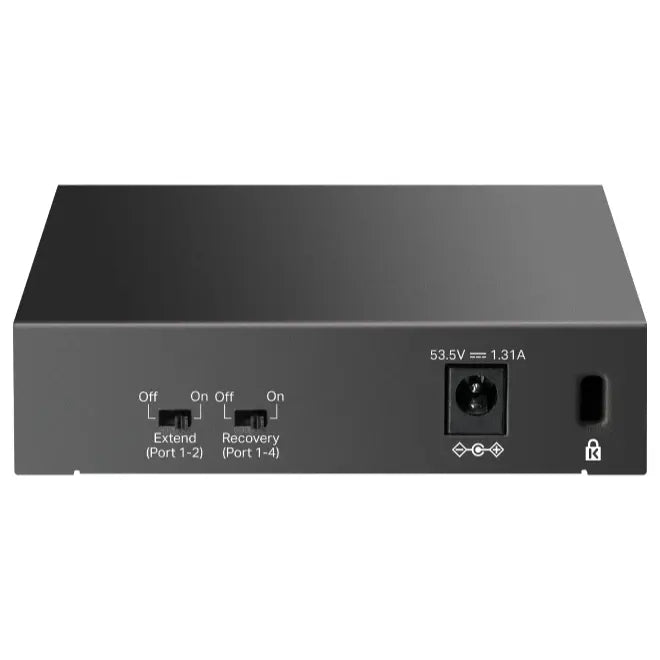

Advanced Features: Extend Mode Button Ports 1-2 Up To 250m PoE Power Supply And Data Transmission

Advanced Features: PoE Auto Recovery Button Ports 1-4

Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs

Advanced Features: Mac Address Auto-Learning And Auto-Aging

Advanced Features: IEEE 802.3x Flow Control

Advanced Features: 802.1p/DSCP QoS

Advanced Features: IGMP Snooping

Advanced Features: Green Technology

Network Media: 10BASE-T UTP Category 3/4/5 Cable Max 100m; EIA/TIA-568 100 Ohm STP Max 100m

Network Media: 100BASE-TX UTP Category 5/5e Cable Max 100m; EIA/TIA-568 100 Ohm STP Max 100m

Network Media: 1000BASE-T UTP Category 5/5e/6 Or Above Cable Max 100m; EIA/TIA-568 100 Ohm STP Max 100m

Fan Quantity: Fanless

Installation: Desktop, Wall Mounting

Power Supply: External Power Adapter Output 53.5VDC/1.31A

Dimensions: 3.9x3.9x1.0in 99.8x98x25mm

Max Power Consumption: 4W 220/50Hz No PD Connected

Max Power Consumption: 74.46W 220/50Hz With 65W PD Connected

Max Heat Dissipation: 13.6BTU/h No PD Connected

Max Heat Dissipation: 253.16BTU/h With 65W PD Connected

Certification: FCC, CE, RoHS

Package Contents: LS105GP, Power Adapter, Installation Guide

Operating Temperature: 0-40 C 32-104 F

Storage Temperature: -40-70 C -40-158 F

Operating Humidity: 10-90% RH Non-Condensing

Storage Humidity: 5-90% RH
