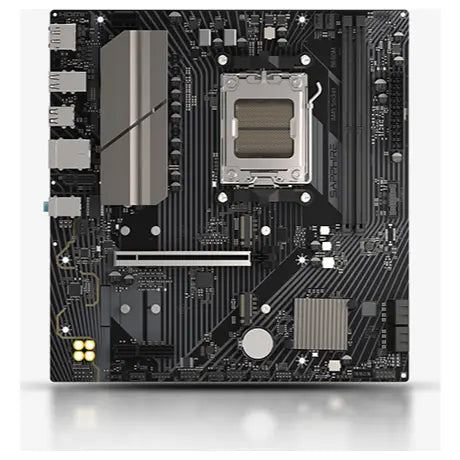

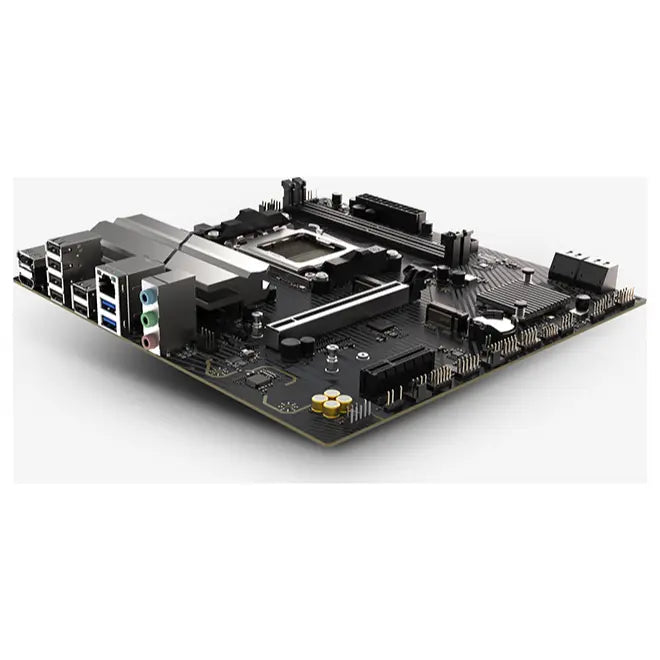

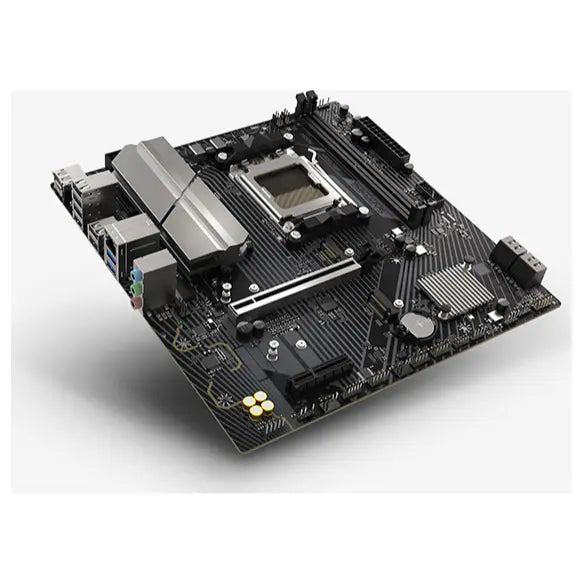

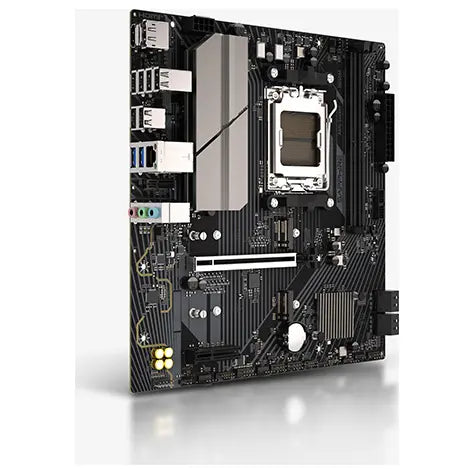

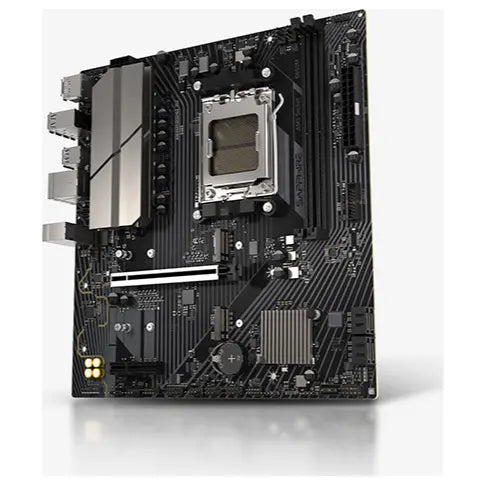

Sapphire B650M-E Motherboard Micro-ATX Socket AM5 AMD B650, DDR5 Up To 96GB 7600MHz OC
Availability: In Stock
Warranty: 10 - Month(s) Warranty
Brand: Sapphire
Categories: AMD AM5 Socket
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor: AMD Ryzen 9
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link: https://www.sapphiretech.com/en/consumer/mb_sapphire-b650m-e
Shipping
We offer fast and reliable shipping for all our clothing items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
Built on the AMD B650 chipset with support for AMD Socket AM5 processors including Ryzen 9000, 8000, and 7000 Series desktop processors
Micro-ATX motherboard design measuring 244x235mm for compact desktop builds
Dual-channel DDR5 memory support with 2x DIMM slots, up to 96GB total capacity and up to 7600MHz OC
PCI Express expansion with 1x PCIe 4.0 x16 and 1x PCIe 4.0 x4 slots
Storage support includes 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, and 4x SATA connections
Rear connectivity includes DisplayPort and HDMI, plus USB 2.0 and USB 3.2 Gen1 Type-A ports
Front USB header support includes USB 3.2 Gen1 for 2x Type-A and USB 2.0 for 4x Type-A
Realtek ALC897 HD Audio with 5.1 channel output and rear audio jacks
Realtek RTL8125BG 2.5 Gigabit Ethernet networking via RJ45 LAN port
Power and cooling design includes 6+2+1 phase CPU power with 60A per phase, robust VRM, and M.2 and PCH cooling
Debug LED indicators for DRAM, CPU, GPU, and Boot status
Includes Sapphire Core BIOS
Product Specifications
Model: Sapphire B650M-E
Chipset: AMD B650
CPU Support: Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Form Factor: Micro-ATX
Dimensions: 244x235mm
BIOS: Sapphire Core BIOS
CPU Power: 6+2+1 Phase CPU Power, 60A Per Phase
Cooling: Robust VRM, M.2 and PCH Cooling
Memory Support: 2x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 96GB (2x 48GB), up to 7600MHz OC
PCI-E Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 4.0 x4
M.2 Support: 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2
SATA: 4x SATA
Display Connector: DisplayPort x1, HDMI x1
Audio: Realtek ALC897 HD Audio, 5.1 Channel
Network: Realtek RTL8125BG 2.5 Gigabit Ethernet
Front USB Headers: 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)
Rear Ports: 1x DisplayPort, 1x HDMI, 6x USB 2.0, 2x USB 3.2 Gen1 Type-A, 1x RJ45 LAN, 3x Audio Jacks
Debug LED: DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
