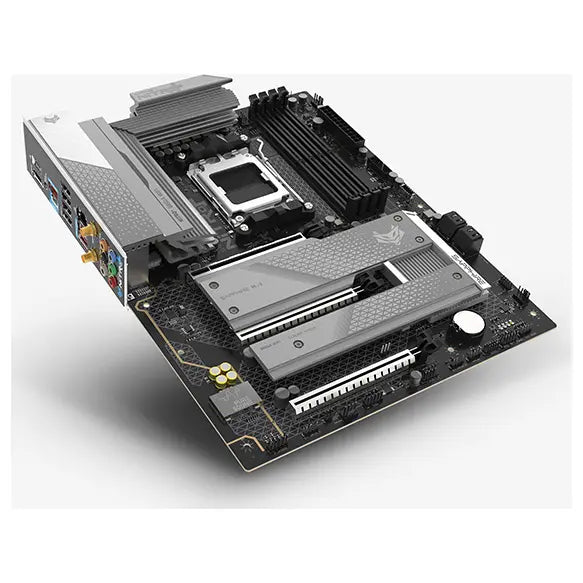

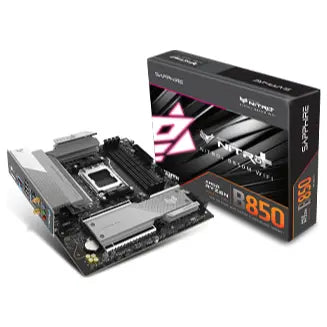

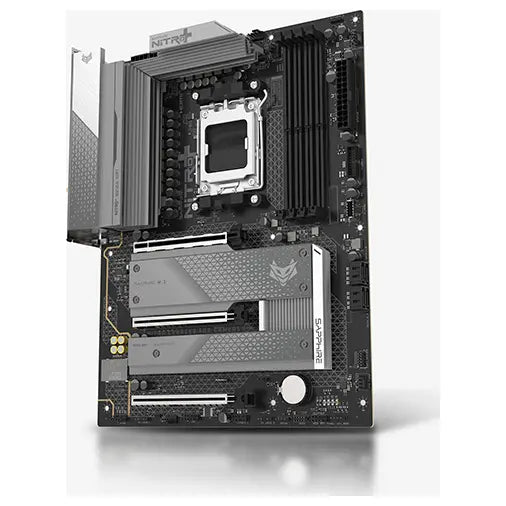

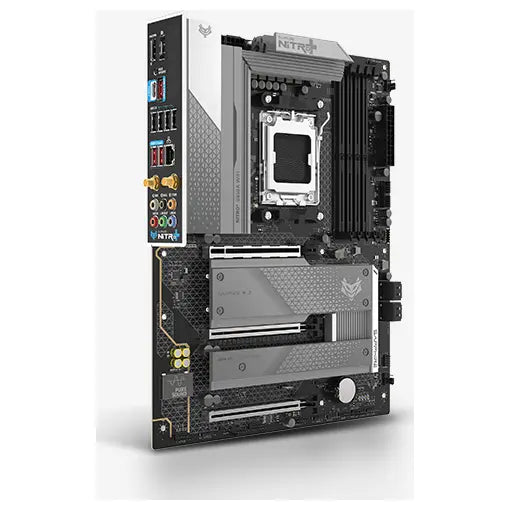

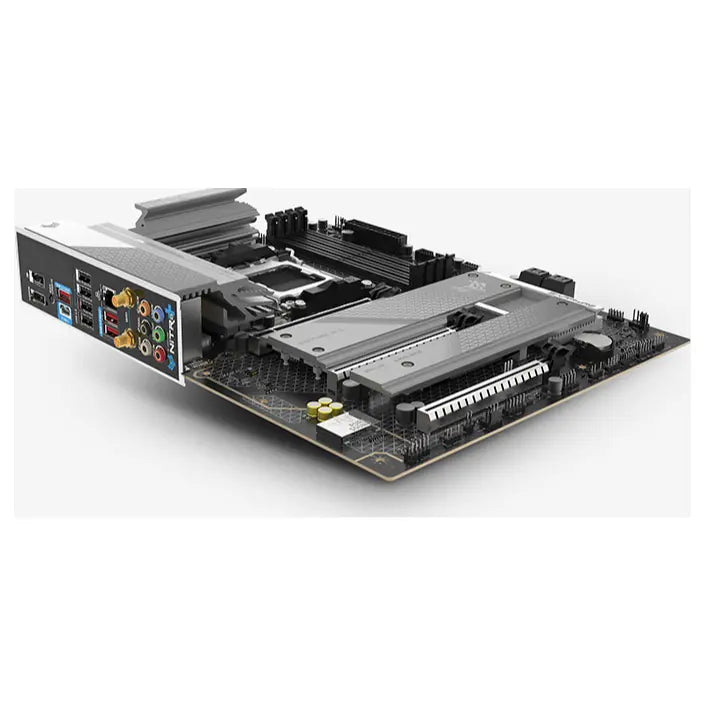

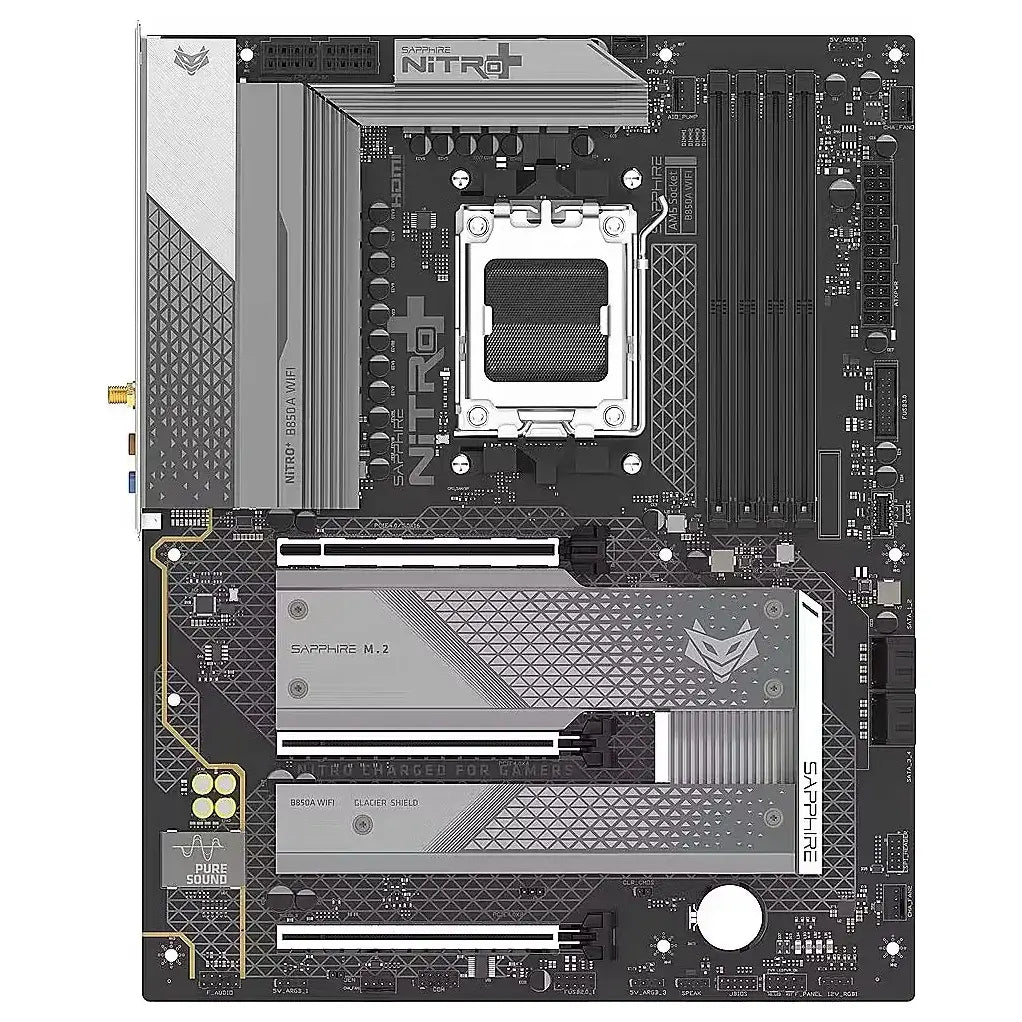

Sapphire NITRO+ B850A WIFI 7 Motherboard AMD B850 Socket AM5 ATX, PCIe 5.0 x16, DDR5 Up To 8000MHz OC, WiFi 7
Availability: In Stock
Warranty: 10 - Month(s) Warranty
Brand: Sapphire
Categories: AMD AM5 Socket
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor: AMD Ryzen 9
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link: https://www.sapphiretech.com/en/consumer/mb_nitro_b850a-wifi7#Specification
Shipping
We offer fast and reliable shipping for all our clothing items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
Built for AMD Socket AM5 processors, including Ryzen 9000 / 8000 / 7000 Series desktop processors
ATX motherboard design with AMD B850 chipset for desktop builds
Wireless connectivity with WiFi 7 module supporting 802.11 a/b/g/n/ac/ax/be across 2.4GHz / 5GHz / 6GHz bands, plus Bluetooth 5.4 support
Robust power delivery with 12+2+1 phase CPU power rated at 55A per phase
Supports DDR5 dual-channel memory with up to 256GB capacity and up to 8000MHz OC
High-speed expansion with PCI Express 5.0 x16 and PCIe 5.0 M.2 support
Cooling design includes robust VRM, M.2, and PCH cooling
Debug LED status indicators for DRAM, CPU, GPU, and Boot
One-click Flash BIOS Button and SAPPHIRE CORE BIOS support
Product Specifications
Product Name: Sapphire NITRO+ B850A WIFI 7 Motherboard
Chipset: AMD B850
CPU Support: Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors
BIOS: SAPPHIRE CORE BIOS
CPU Power Design: 12+2+1 Phase CPU Power, 55A Per Phase
Memory Support: 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000MHz OC
PCI-E Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 4.0 x2 in 16x slot
Storage: 1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA
Display Connector: DisplayPort x1, HDMI x1
Audio: Realtek ALC897 HD Audio, 7.1 Channel
Network: Realtek RTL8125BG 2.5 Gigabit Ethernet
Wireless Module: M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support
Front USB Headers: 1x USB 3.2 Gen1 (1 x Type C), 1x USB 3.2 Gen1 (2 x Type A), 1x USB 2.0 (2 x Type A)
Rear Ports: 1 x DisplayPort, 1 x HDMI, 1 x RJ45 LAN, 2 x Wi Fi Antenna, One-click Flash BIOS Button, 4 x USB 2.0, 3 x USB 3.2 Gen2 Type A, 1 x USB 3.2 Gen2 Type C, 6 x Audio Jacks
Dimensions: ATX, 305x244mm
Debug LED: DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
