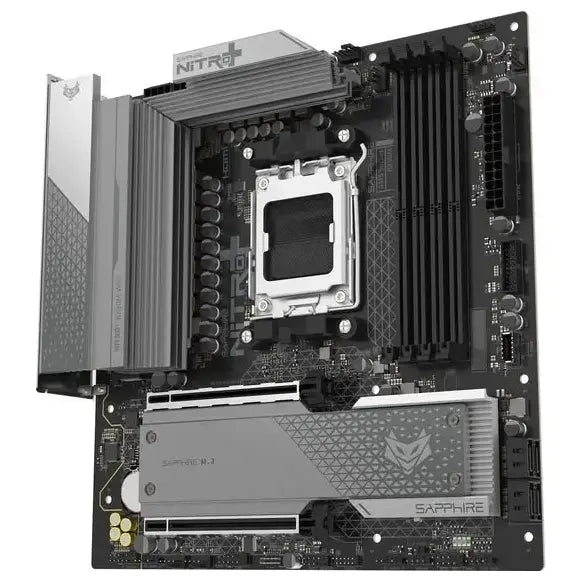

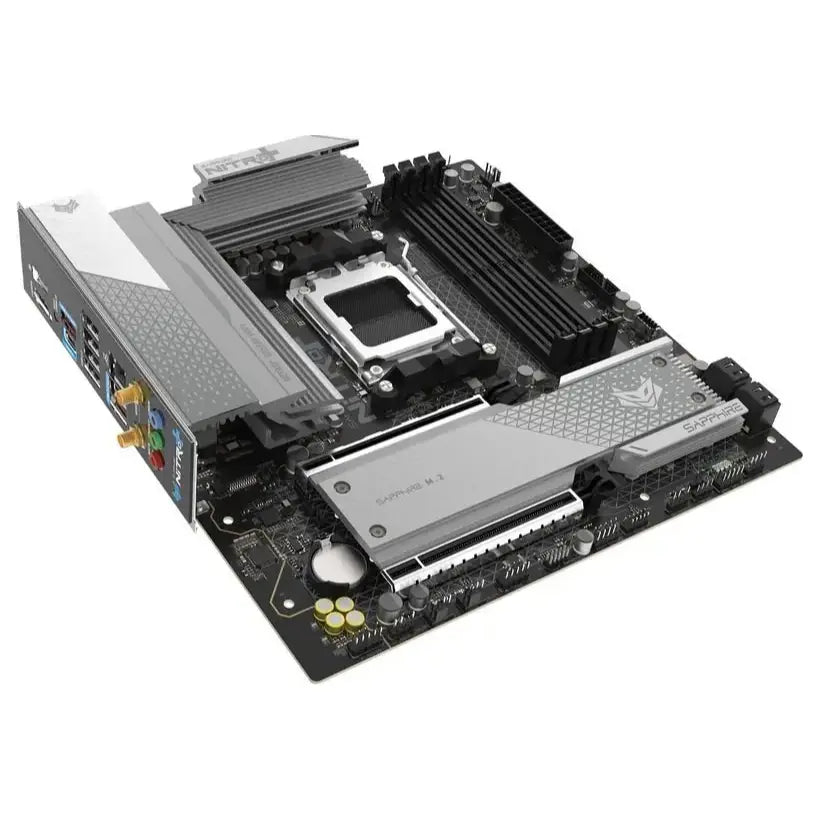

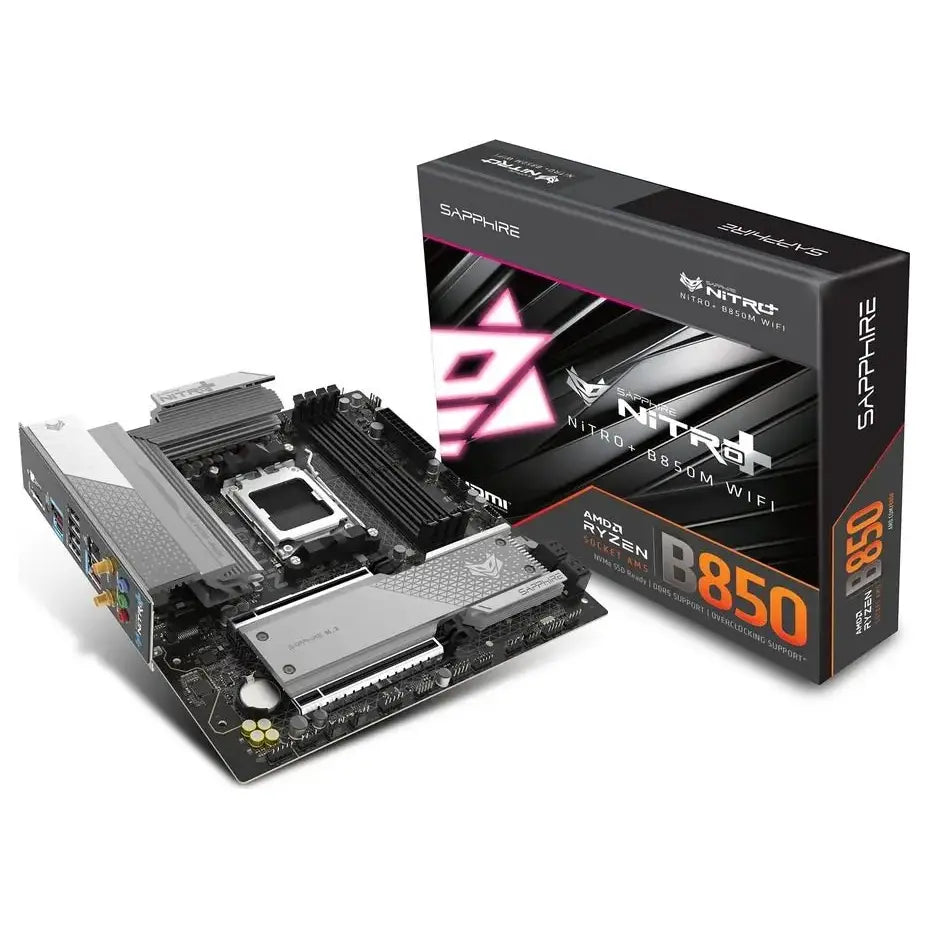

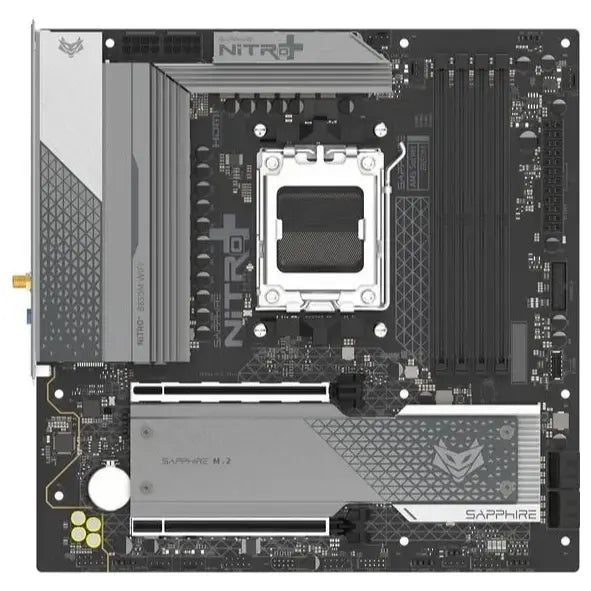

Sapphire NITRO+ B850M WIFI Motherboard Micro-ATX AMD B850 AM5 PCIe 5.0 x16 DDR5 Up To 8000MHz OC
Availability: In Stock
Warranty: 10 - Month(s) Warranty
Brand: Sapphire
Categories: AMD AM5 Socket
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor: AMD Ryzen 9
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link: https://www.sapphiretech.com/en/consumer/mb_nitro_b850m-wifi
Shipping
We offer fast and reliable shipping for all our clothing items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
Micro-ATX Sapphire NITRO+ B850M WIFI Motherboard built on the AMD B850 chipset with support for AMD Socket AM5 processors including Ryzen 9000, 8000, and 7000 Series desktop processors
12+2+1 phase CPU power design with 55A per phase and a robust VRM design for stable CPU power delivery
Dual-channel DDR5 memory support with 4x DIMMs, up to 256GB total capacity, and up to 8000MHz OC memory support
PCI Express 5.0 x16 expansion plus PCIe 5.0 M.2 support for high-bandwidth GPU and storage configurations
Integrated networking with Realtek RTL8125BG 2.5 Gigabit Ethernet and an M.2 WiFi 6 module supporting 802.11 a/b/g/n/ac/ax on 2.4GHz and 5GHz bands, plus Bluetooth 5.3 support
Display output options include 1x DisplayPort and 1x HDMI
Debug LED indicators for DRAM, CPU, GPU, and Boot status to help identify system issues
One-click Flash BIOS Button and SAPPHIRE CORE BIOS support for BIOS management
Product Specifications
Chipset: AMD B850
CPU Support: Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Form Factor and Dimensions: Micro-ATX, 244x244mm
Power Design: 12+2+1 Phase CPU Power, 55A Per Phase
BIOS: SAPPHIRE CORE BIOS
Memory Support: 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000MHz(OC)
PCI-E Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot
M.2 Support: PCIe 5.0 M.2 Support
Storage: 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA
Display Connector: DisplayPort x1, HDMI x1
Audio: Realtek ALC897 HD Audio, 5.1 Channel
Network: Realtek RTL8125BG 2.5 Gigabit Ethernet
Wireless: M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4GHz / 5GHz band, Bluetooth 5.3 Support
Front USB Headers: 1x USB 3.2 Gen1 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 1x USB 2.0 (2 x Type-A)

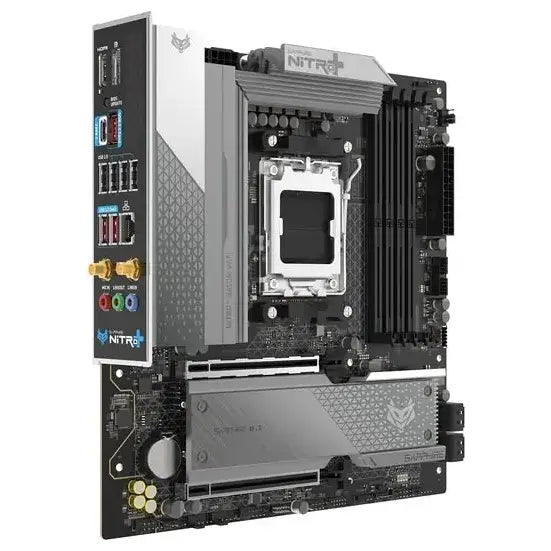

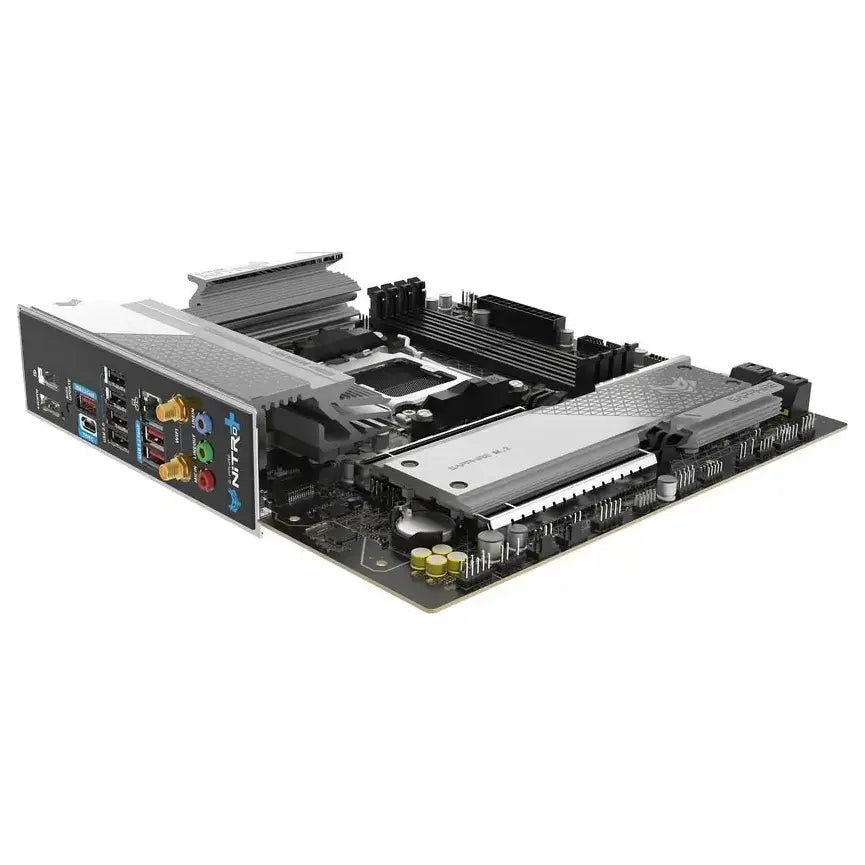

Rear Ports: 1x DisplayPort, 1x HDMI, 1x RJ45 LAN, 2x Wi-Fi Antenna, One-click Flash BIOS Button, 4x USB 2.0, 3x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C, 3x Audio Jacks
Cooling: Robust VRM, M.2 and PCH Cooling
Debug LED: DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
