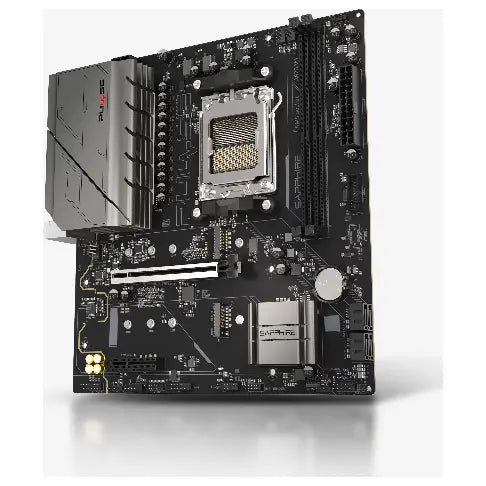

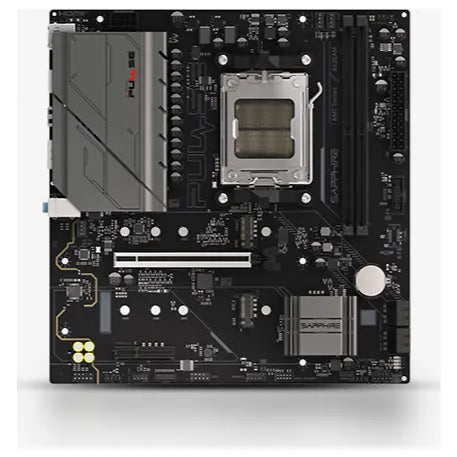

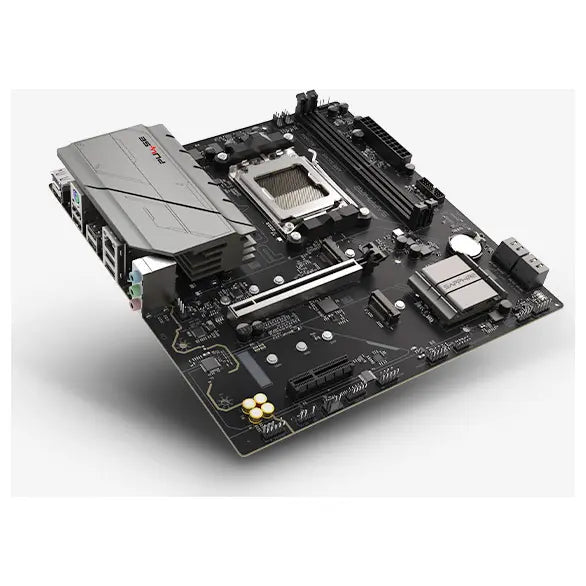

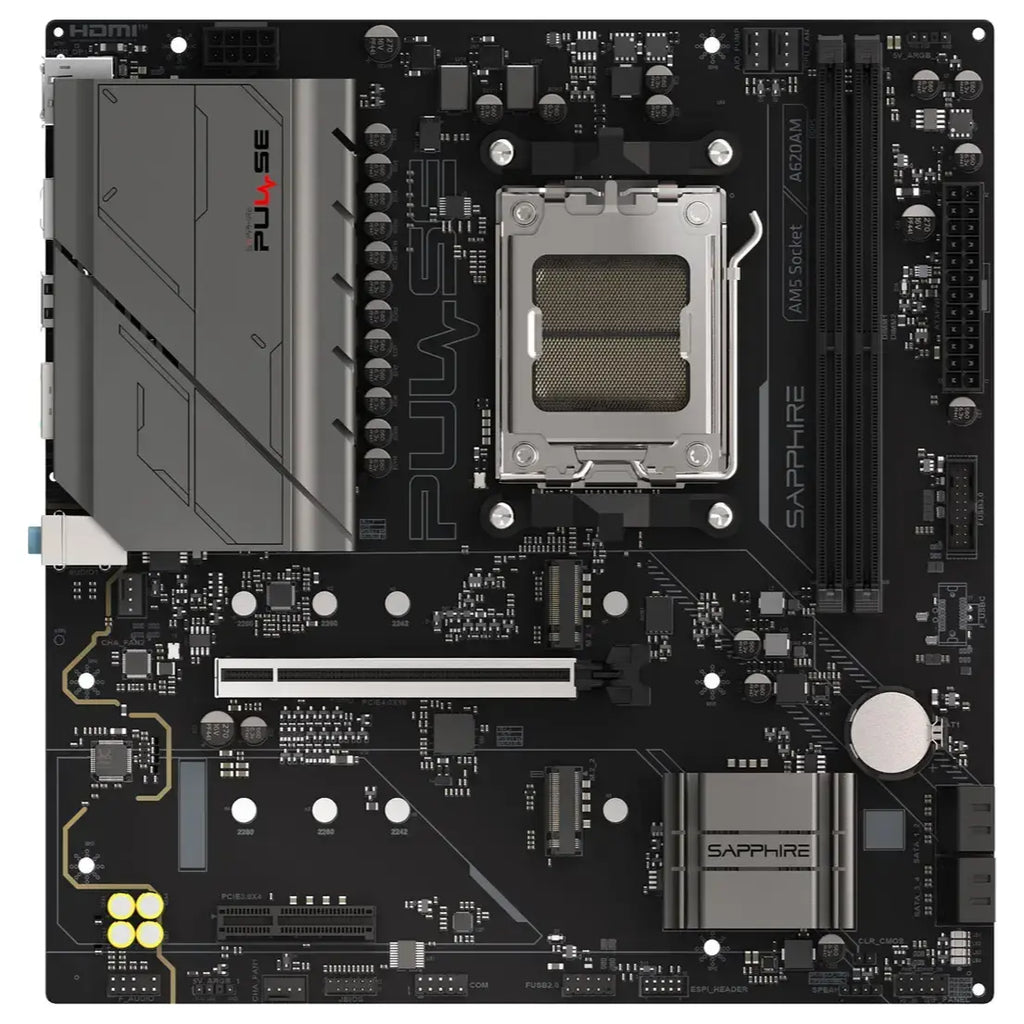

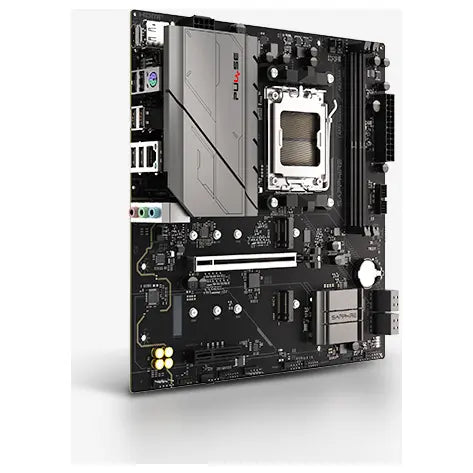

Sapphire PULSE A620AM Motherboard Micro-ATX AMD A620A Socket AM5 DDR5 Up To 64GB 7600MHz OC PCIe 4.0 x16
  • Sapphire PULSE A620AM Motherboard Micro-ATX AMD A620A Socket AM5 DDR5 Up To 64GB 7600MHz OC PCIe 4.0 x16
  • Sapphire PULSE A620AM Motherboard Micro-ATX AMD A620A Socket AM5 DDR5 Up To 64GB 7600MHz OC PCIe 4.0 x16
  • Sapphire PULSE A620AM Motherboard Micro-ATX AMD A620A Socket AM5 DDR5 Up To 64GB 7600MHz OC PCIe 4.0 x16
  • Sapphire PULSE A620AM Motherboard Micro-ATX AMD A620A Socket AM5 DDR5 Up To 64GB 7600MHz OC PCIe 4.0 x16
  • Sapphire PULSE A620AM Motherboard Micro-ATX AMD A620A Socket AM5 DDR5 Up To 64GB 7600MHz OC PCIe 4.0 x16
  • Sapphire PULSE A620AM Motherboard Micro-ATX AMD A620A Socket AM5 DDR5 Up To 64GB 7600MHz OC PCIe 4.0 x16
Sapphire PULSE A620AM Motherboard Micro-ATX AMD A620A Socket AM5 DDR5 Up To 64GB 7600MHz OC PCIe 4.0 x16

Sapphire PULSE A620AM Motherboard Micro-ATX AMD A620A Socket AM5 DDR5 Up To 64GB 7600MHz OC PCIe 4.0 x16

Rs.28,500
Rs.28,500

Sapphire PULSE A620AM Motherboard with AMD A620A chipset supports Socket AM5 Ryzen 9000, 8000, and 7000 series processors, DDR5 dual-channel memory up to 64GB and 7600MHz OC, and PCIe 4.0 expansion and M.2 storage.
Supports AMD Socket AM5 Ryzen 9000, 8000, 7000 Series
DDR5 Dual Channel 64GB Max, Up To 7600MHz OC
1x PCIe 4.0 x16, 1x PCIe 3.0 x4, 2x M.2
Micro-ATX 244x235mm, Gigabit Ethernet, HDMI and DisplayPort

Availability: In Stock

Warranty: 10 - Month(s) Warranty

Brand: Sapphire

Categories: AMD AM5 Socket

Battery:

Curved:

Display Size:

Graphics:

Monitor Type:

Processor: AMD Ryzen 9

RAM Capacity:

Refresh Rate:

Resolution:

Series:

Storage:

Sync Technology:

Manufacturer's Link:

Estimated delivery: 2 - 5 days across the country.

Shipping

We offer fast and reliable shipping for all our clothing items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
  • We do not accept returns under any circumstances.
  • We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
  • Opened or used items are not eligible for exchange.
  • Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.

Product Features

Built on the AMD A620A chipset with support for AMD Socket AM5 processors including Ryzen 9000, 8000, and 7000 Series desktop processors

Dual-channel DDR5 memory support with 2x DIMMs, up to 64GB and up to 7600MHz OC

Expansion support includes PCI Express 4.0 x16 and an additional PCIe 3.0 x4 slot

Storage support includes PCIe 4.0 M.2 and PCIe 3.0 M.2, plus 4x SATA

Display output via 1x DisplayPort and 1x HDMI

Realtek ALC897 HD Audio with 5.1 channel audio output

Realtek RTL8111K Gigabit Ethernet for wired networking

Includes SAPPHIRE CORE BIOS and robust VRM, M.2, and PCH cooling

Debug LED indicators for DRAM, CPU, GPU, and Boot status

Product Specifications

Product Name: Sapphire PULSE A620AM Motherboard

Chipset: AMD A620A

CPU Support: Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors

BIOS: SAPPHIRE CORE BIOS

CPU Power Design: 6+2+1 Phase CPU Power, 55A Per Phase

Cooling: Robust VRM, M.2 and PCH Cooling

Memory Support: 2x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 64GB 2x 32GB, up to 7600MHz OC

PCI-E Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x4

M.2 Support: 1x PCIe 4.0 M.2, 1x PCIe 3.0 M.2

Storage: 1x PCIe 4.0 M.2, 1x PCIe 3.0 M.2, 4x SATA

Display Connectors: DisplayPort x1, HDMI x1

Rear Ports: 1x HDMI, 1x DisplayPort, 1x PS/2, 4x USB 2.0, 2x USB 3.2 Gen 1 Type-A, 1x LAN RJ45, 3x Audio Jacks

Front USB Headers: 1x USB 3.2 Gen1 2x Type-A, 1x USB 2.0 2x Type-A

Audio: Realtek ALC897 HD Audio, 5.1 Channel

Network: Realtek RTL8111K Gigabit Ethernet

Form Factor: Micro-ATX

Dimensions: 244x235mm

Debug LED: DRAM Yellow, CPU Red, GPU White, Boot Green
