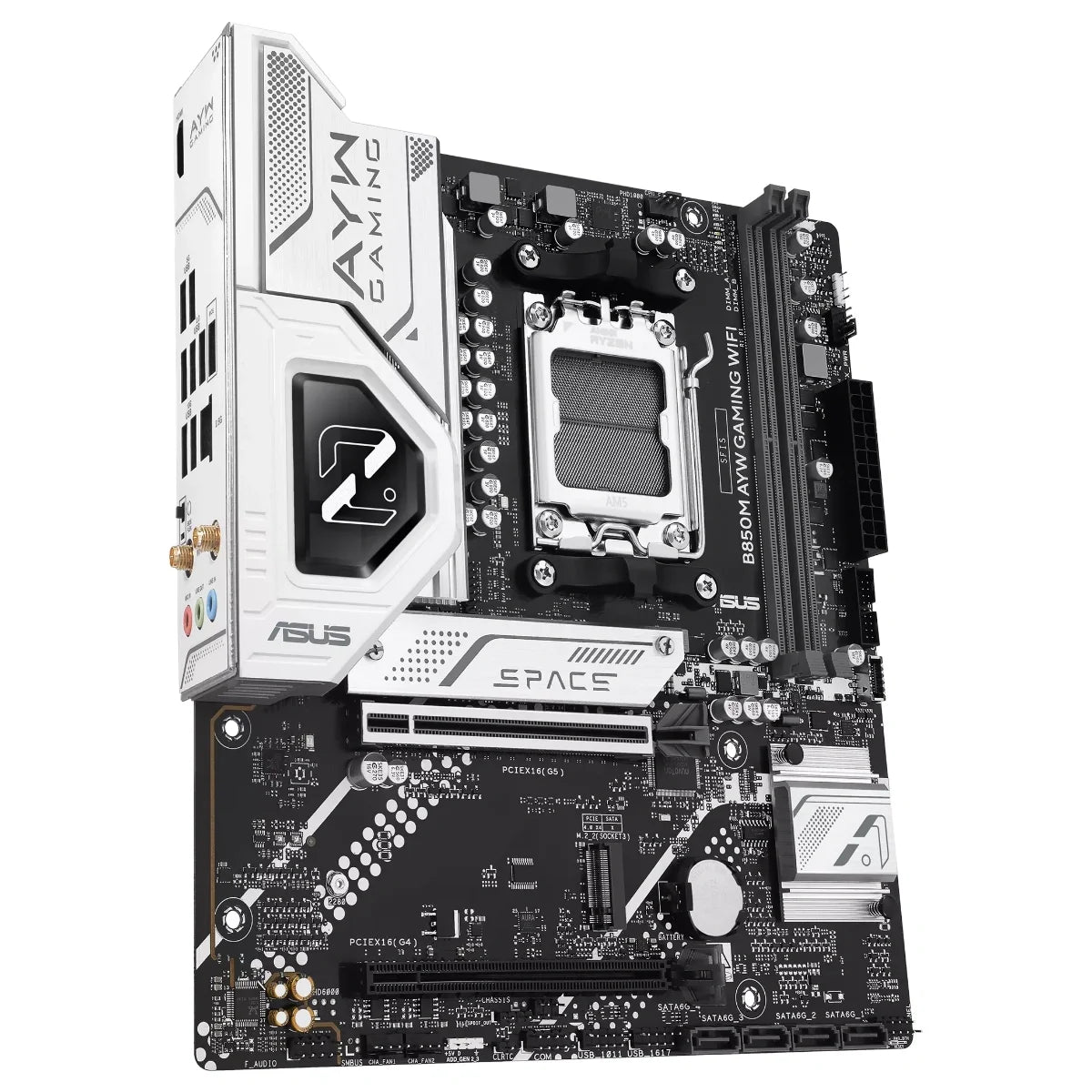

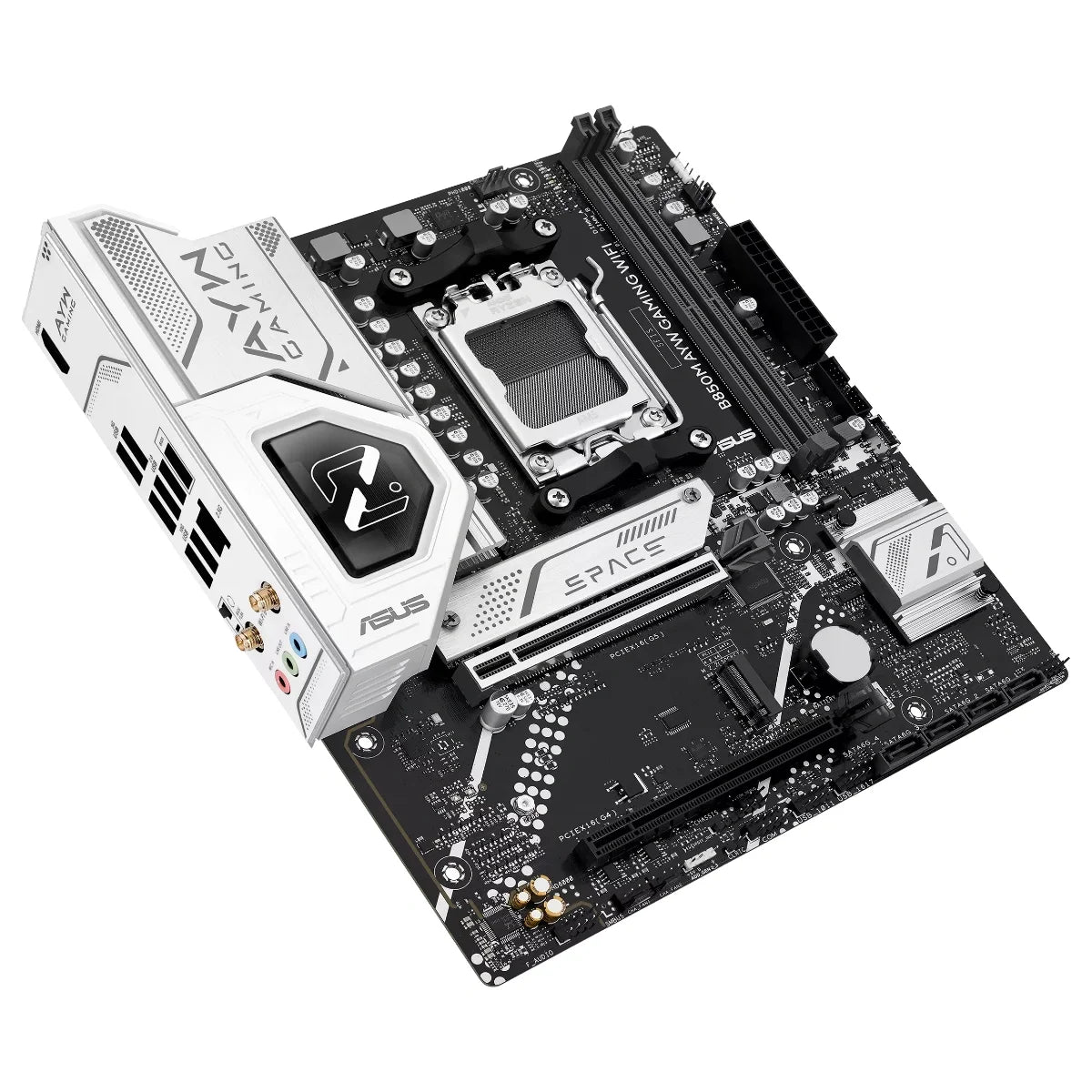

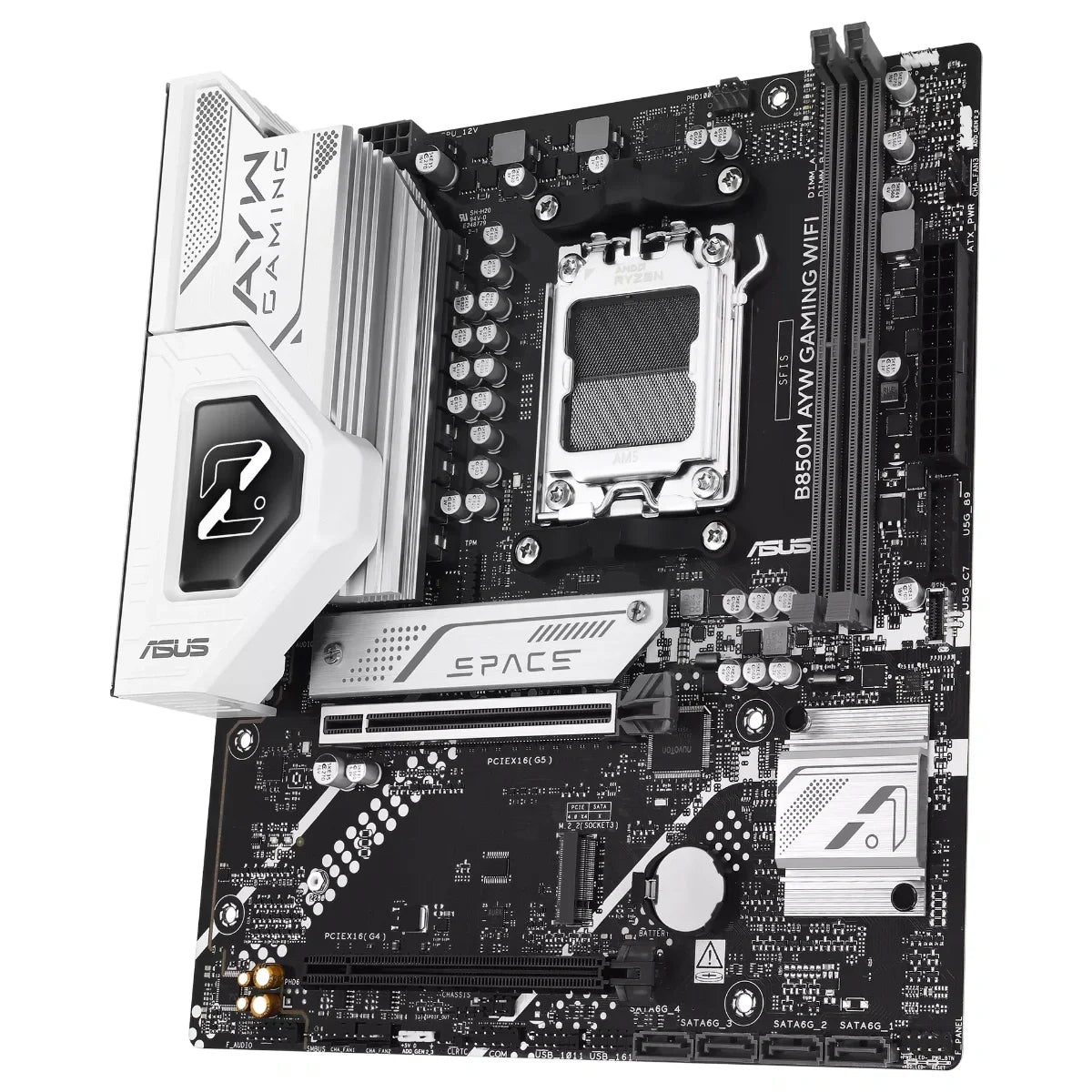

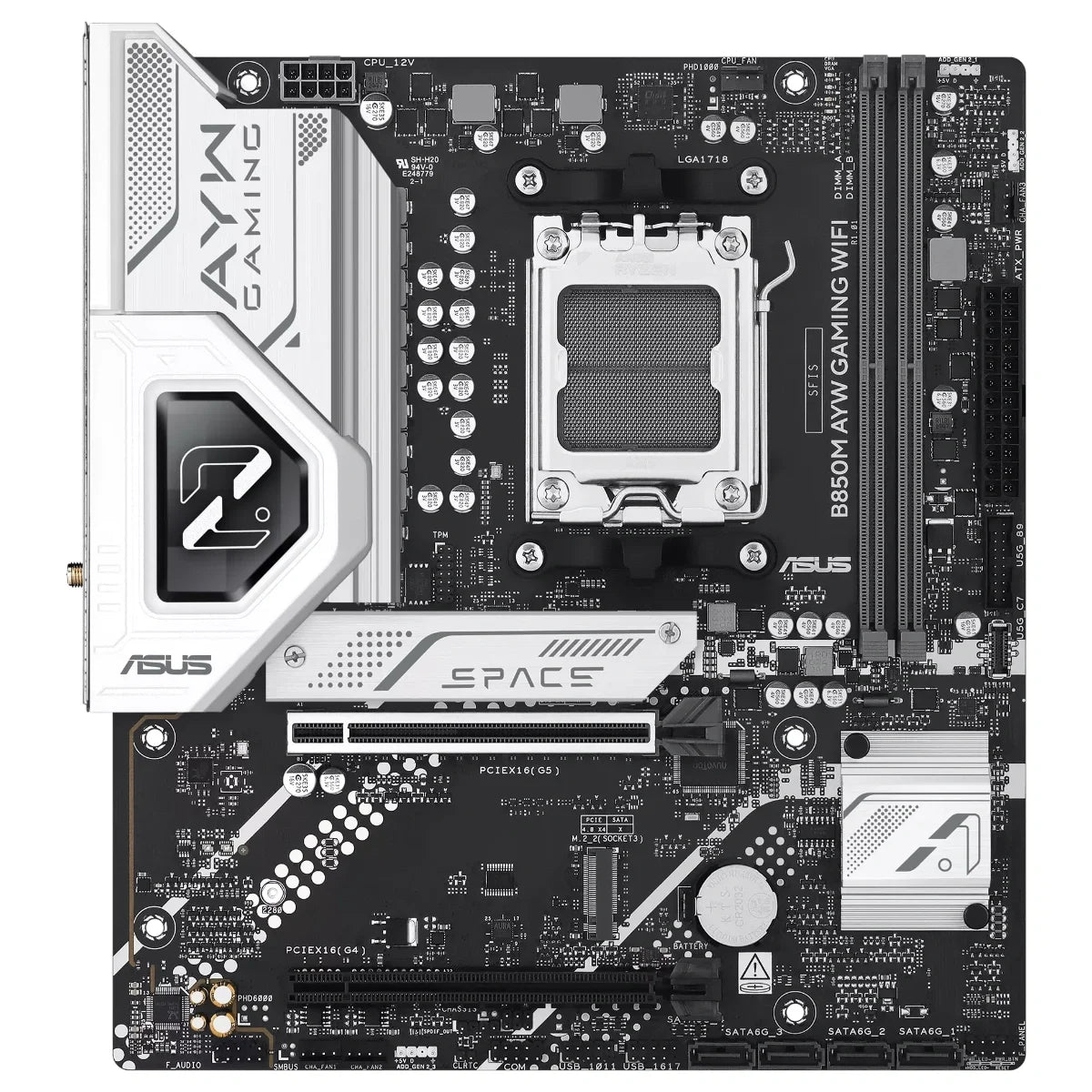

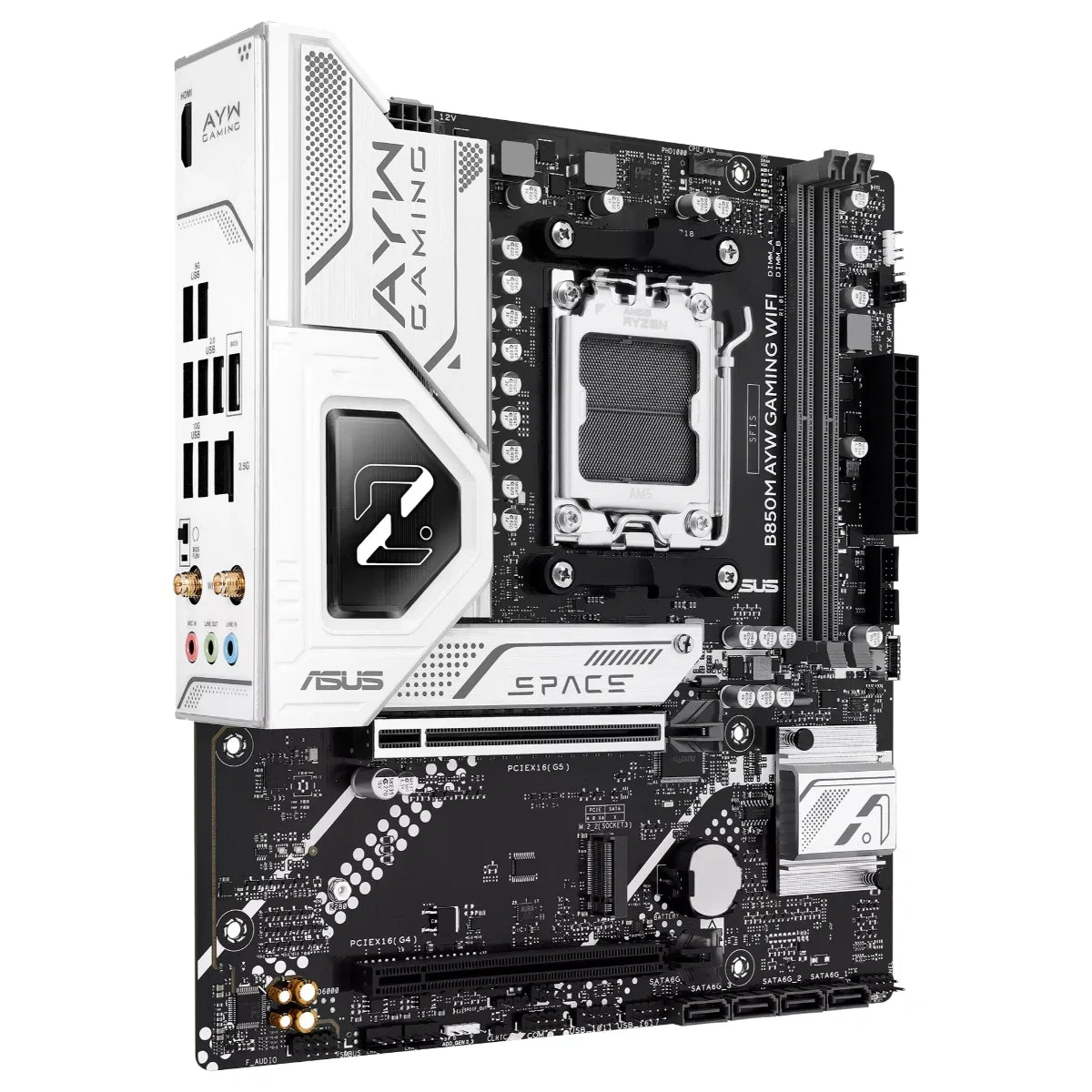

ASUS B850M AYW GAMING WIFI Motherboard, Socket AM5, Micro-ATX, DDR5 Up To 128GB, 2x M.2, Wi-Fi 6, Realtek 2.5Gb Ethernet
Availability:
Warranty:
Brand: Asus
Categories:
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor:
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link:
Shipping
We offer fast and reliable shipping for all our items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
Socket AM5 CPU Support: Build around AMD Socket AM5 with support for AMD Ryzen 9000, 8000, and 7000 Series desktop processors. This makes it easy to plan a new system or upgrade while staying on the same platform. Support for up to an AMD 170W CPU helps you pair it with higher-performance processors for demanding workloads.
Micro-ATX Build for Practical PC DIY: Fit strong desktop performance into a smaller footprint with a micro-ATX form factor. The 9.6 inch x 8.7 inch layout is a great match for compact builds without giving up key expansion and storage options. It is designed to be Advanced AI PC-ready, giving you the power and connectivity needed for demanding AI applications.
Wireless and Wired Networking Built In: Connect the way you prefer with Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for convenient wireless use. For stable low-latency networking, Realtek 2.5Gb Ethernet is ready for gaming and large downloads. ASUS LANGuard adds protection-focused design for the LAN connection.
Fast Storage and Expansion Flexibility: Install modern SSDs using 2x M.2 slots and add additional drives with 4x SATA 6Gb/s ports. With Ryzen 9000 and 7000 Series processors, the M.2_1 slot supports PCIe 5.0 x4 mode for high-bandwidth storage. PCIe expansion includes a primary PCIe 5.0 x16 slot (with Ryzen 9000 and 7000 Series) plus an additional PCIe 4.0 x16 slot (x4 mode) from the chipset.
Product Specifications
Model: B850M AYW GAMING WIFI
Chipset: AMD B850 Chipset
CPU Socket: AMD Socket AM5
CPU Support: AMD Ryzen 9000 and 8000 and 7000 Series Desktop Processors
Max CPU Support: Supports up to AMD 170W CPU
Form Factor: micro-ATX Form Factor
Dimensions: 9.6 inch x 8.7 inch (24.4 cm x 22.1 cm)
Memory Slots: 2x DIMM
Max Memory: Up To 128GB
Memory Type: DDR5
Memory Speed Support: Up To 8200+MT/s(OC) with Ryzen 9000 Series; Up To 9600+MT/s(OC) with Ryzen 8000 Series; Up To 8000+MT/s(OC) with Ryzen 7000 Series
Memory Features: ECC and Non-ECC Un-buffered DIMM, Dual Channel, AMD EXPO, ASUS AEMP
Graphics Output: 1x HDMI
HDMI Support: 4K@60Hz as specified in HDMI 2.1
Expansion Slots (Ryzen 9000 and 7000): 1x PCIe 5.0 x16 (supports x16 mode)
Expansion Slots (Ryzen 8000): 1x PCIe 4.0 x16 (supports x8/x4 mode)
Expansion Slots (Chipset): 1x PCIe 4.0 x16 (support x4 mode)
Storage: Supports 2x M.2 slots and 4x SATA 6Gb/s ports
M.2 (Ryzen 9000 and 7000): M.2_1 (Key M) 2280 PCIe 5.0 x4, M.2_2 (Key M) 2280 PCIe 4.0 x4
M.2 (Ryzen 8000): M.2_1 (Key M) 2280 PCIe 4.0 x4, M.2_2 (Key M) 2280 PCIe 4.0 x4/x2
RAID: AMD RAIDXpert2; Ryzen 9000: RAID 0/1/5/10; Ryzen 8000: RAID 0/1; Ryzen 7000: RAID 0/1/10
Ethernet: 1x Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless: Wi-Fi 6 (1x1 802.11ax), Supports 2.4/5GHz
Bluetooth: Bluetooth 5.3
Rear USB Ports (Total 8): 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 Type-A
Front USB (Total 7): 1x USB 5Gbps connector (supports USB Type-C), 1x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C Power Delivery: max. 5V/3A
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC, Supports up to 24-Bit/192 kHz playback
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

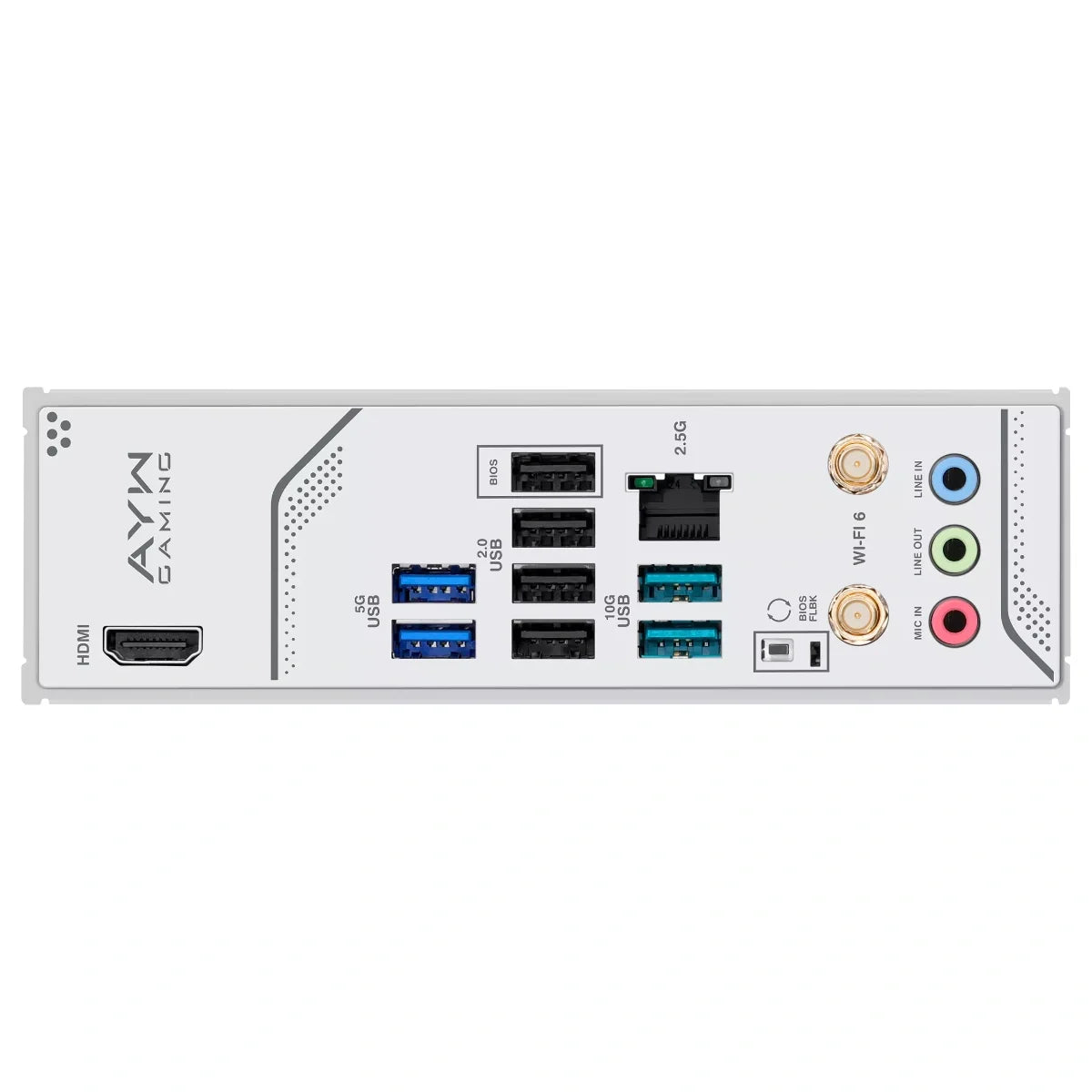

Back Panel I/O: 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 Type-A, 1x HDMI, 1x Wi-Fi module, 1x Realtek 2.5Gb Ethernet, 3x Audio jacks, 1x BIOS FlashBack button
Internal Fan Headers: 1x 4-pin CPU Fan header, 3x 4-pin Chassis Fan headers
Internal Power Connectors: 1x 24-pin Main Power, 1x 8-pin +12V CPU Power
Internal Storage Connectors: 2x M.2 (Key M), 4x SATA 6Gb/s
Internal USB: 1x USB 5Gbps connector (supports USB Type-C), 1x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2x USB 2.0 headers support 4 additional USB 2.0 ports
Internal Misc Connectors: 3x Addressable RGB Gen 2 headers, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (F_AUDIO), 1x S/PDIF Out header, 1x SPI TPM header (14-1 pin), 1x 10-1 pin System Panel header
Special Features: ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync
BIOS: 256Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System Support: Windows 11, Windows 10 64-bit
Accessories: 2x SATA 6Gb/s cables, ASUS Wi-Fi moving antenna, M.2 rubber package, Screw package for M.2 SSD, Quick start guide
