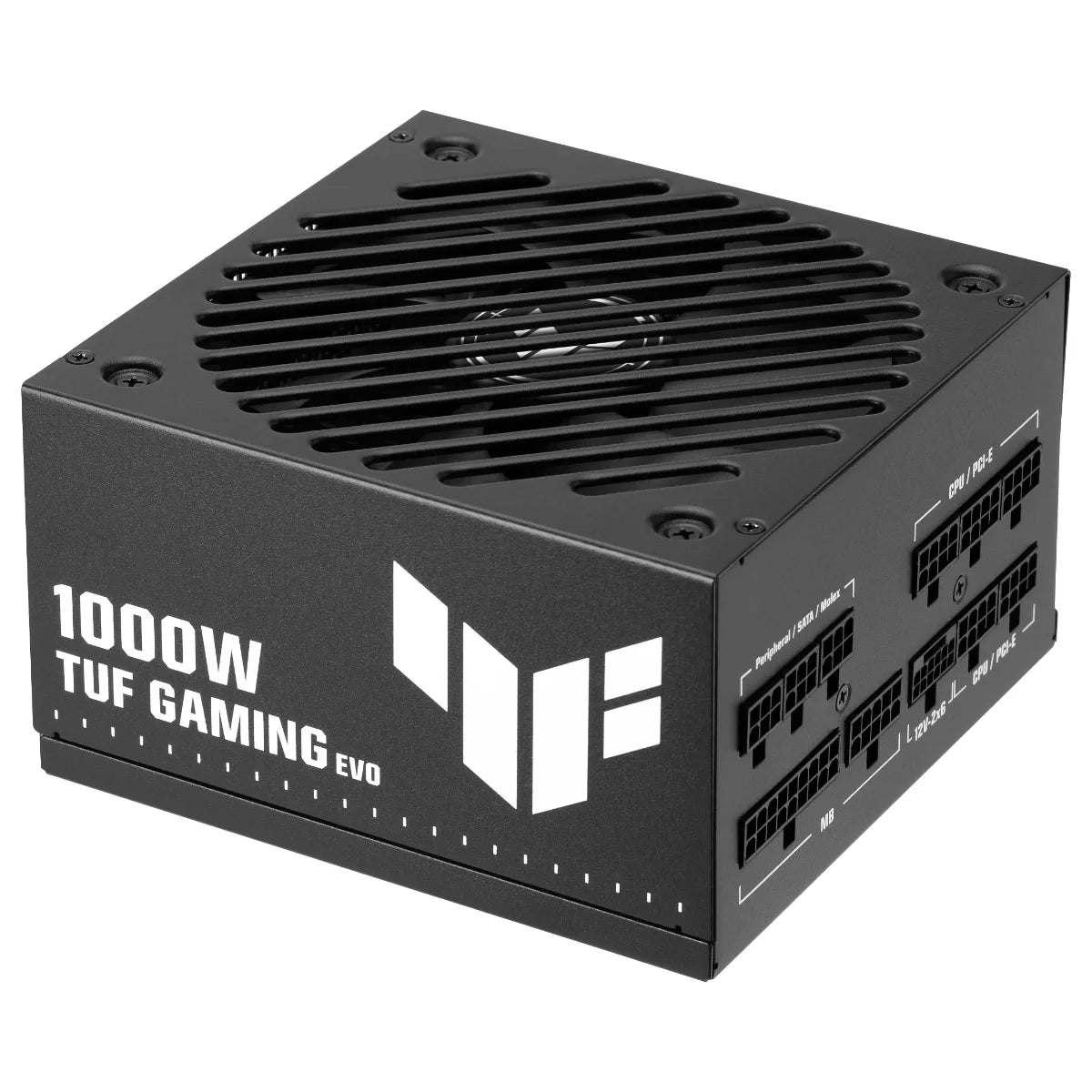

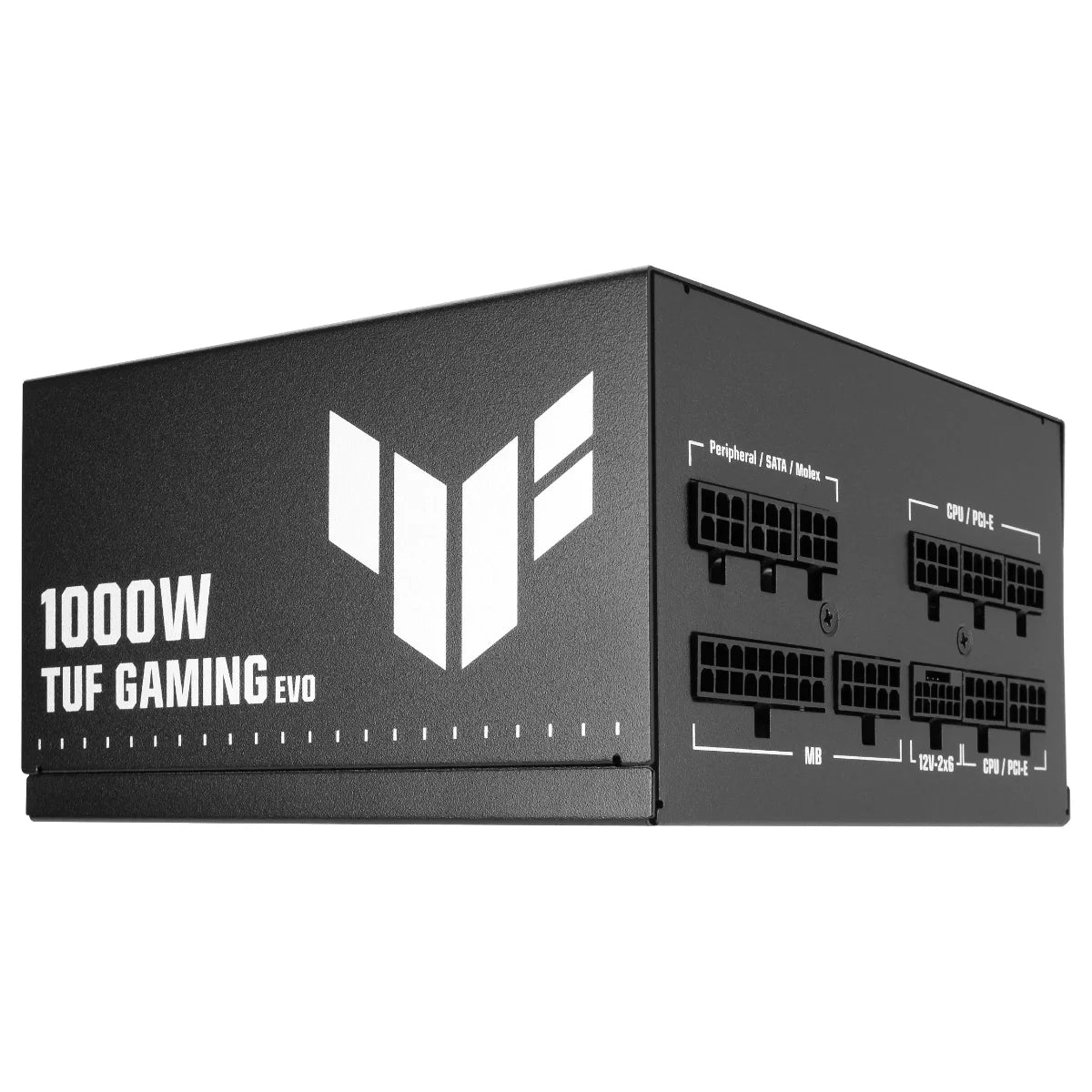

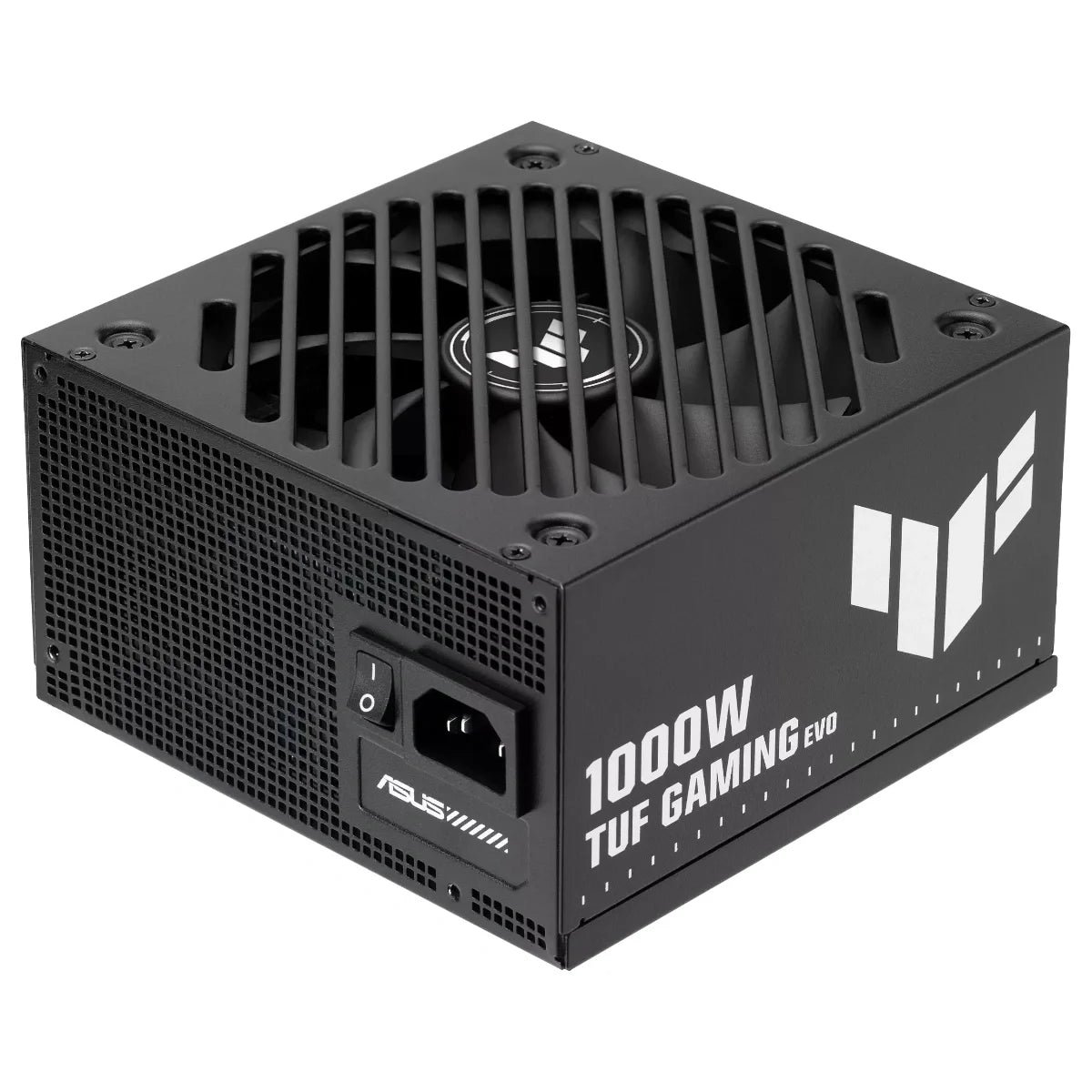

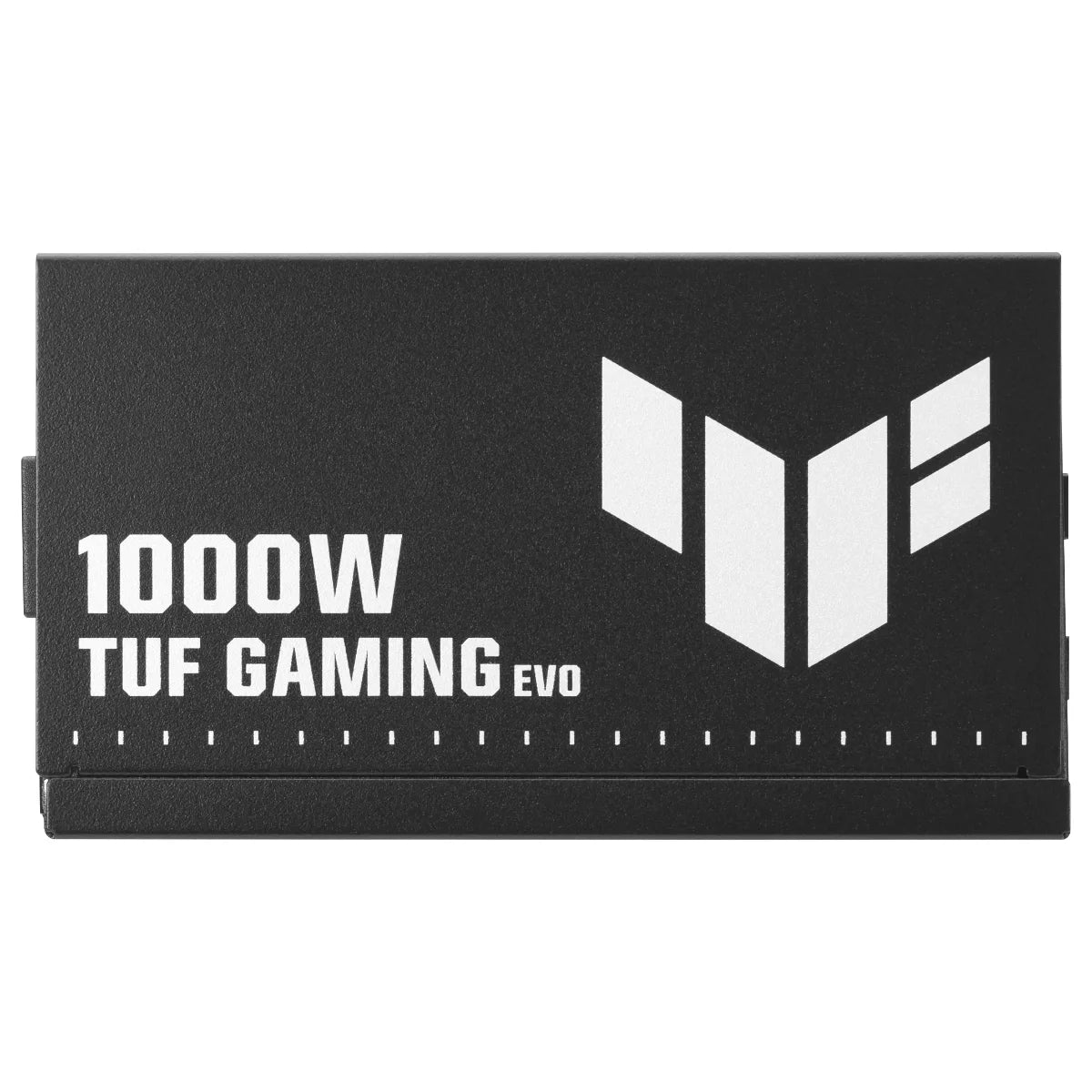

ASUS TUF Gaming 1000W Gold EVO Power Supply, 80 PLUS Gold, ATX 3.1 and PCIe 5.1 Compatible, Active PFC, Dual-Ball Fan Bearings, Protective PCB Coating, TUF-GAMING-1000G-EVO
Availability:
Warranty:
Brand: Asus
Categories:
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor:
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link:
Shipping
We offer fast and reliable shipping for all our items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
Built to support modern PC builds, this 1000W power supply is designed around ATX 3.1 and PCIe 5.1 compatibility so you can plan upgrades with confidence. That means your system can be wired cleanly with the included 12V-2x6 16-pin PCI-E connector and matching Gen 5.1 cable. With 80 PLUS Gold efficiency, it helps reduce wasted power while keeping performance consistent during long gaming or work sessions.
Dual-ball fan bearings are engineered for longevity, helping the cooling system stay dependable over time. In day-to-day use, that translates into a power supply that is built to keep running reliably as your PC handles heavy loads. Combined with an MTBF of >120,000hrs @ 40C, it is aimed at users who want a PSU that can stay stable through extended use.
Protective PCB coating adds an extra layer of defense against moisture and debris, helping safeguard internal components in real-world environments. This can be especially reassuring if your PC sits in a room where dust buildup is a concern. By protecting the board surface, the design focuses on maintaining consistent operation over the long term.
Military-grade capacitors are chosen for durability, using TUF 5K black metallic capacitors with a 52% wider temperature tolerance and up to a 2.5X longer lifespan than standard capacitors. That focus on component endurance supports stable power delivery when your system is under pressure. A full set of protection features including OPP, OVP, UVP, SCP, OCP, and OTP helps protect your hardware by responding to common electrical fault conditions.
Product Specifications
Brand and Series: ASUS TUF Gaming Gold EVO
Model: TUF-GAMING-1000G-EVO
Total Output: 1000W
Efficiency: 80Plus Gold
Form Factor: Intel Form Factor, ATX12V
ATX Standard: ATX 3.1
PCIe Compatibility: PCIe 5.1 Compatible
PFC Type: Active PFC
AC Input Range: 100-240Vac
DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
Maximum Load: 25A 25A 83.33A 0.3A 3A
Combined Load: 125W 125W 1000W 3.6W 15W
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
MTBF: >120,000 hrs @ 40C
Dimensions: 150 x 150 x 86 mm
Weight: 1.72 kg (single PSU)
Hazardous Materials: ROHS
0dB Technology: No
Key Design Elements: Dual-Ball Fan Bearings, Protective PCB Coating, Military-Grade Capacitors, TUF 5K Black Metallic Capacitors

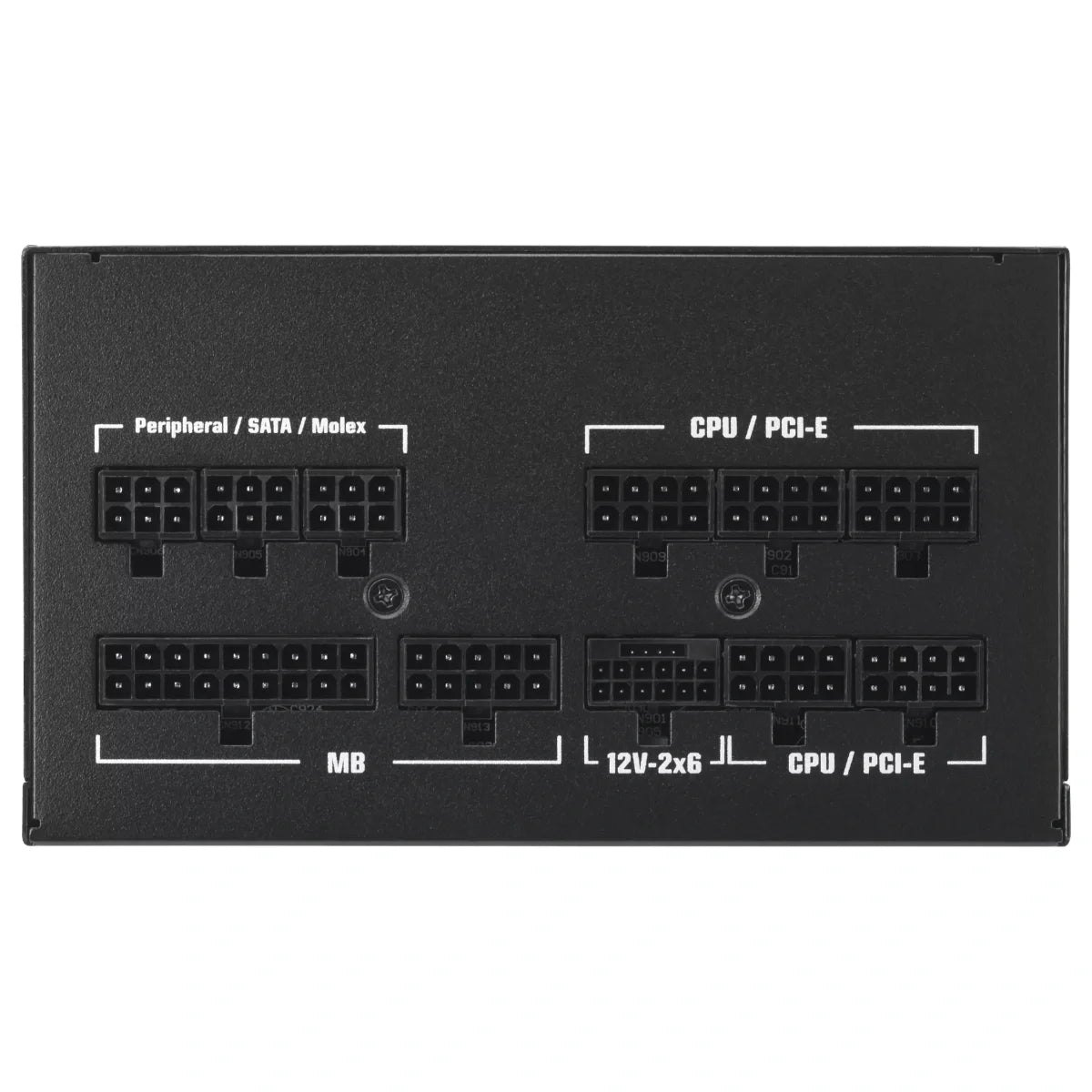

Cable Connectors: MB 20+4pin x 1
Cable Connectors: CPU 4+4pin x 2
Cable Connectors: PCI-E 16pin x 1 (12V-2x6)
Cable Connectors: PCI-E 6+2pin x 3
Cable Connectors: SATA x 6
Cable Connectors: PERIPHERAL x 3
Package Contents: Power Cord x 1
Package Contents: Motherboard Power Cable x 1 (610mm)
Package Contents: CPU Cable x 2 (750mm)
Package Contents: PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (500mm)
Package Contents: PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 3 (500mm)
Package Contents: SATA 1-to-3 Cable x 2 (400+120+120mm)
Package Contents: Peripheral 1-to-3 Cable x 1 (400+120+120mm)
Package Contents: TUF Gaming Cable Tie x 3
Package Contents: Chassis screws package x 1
Package Contents: User Manual x 1
