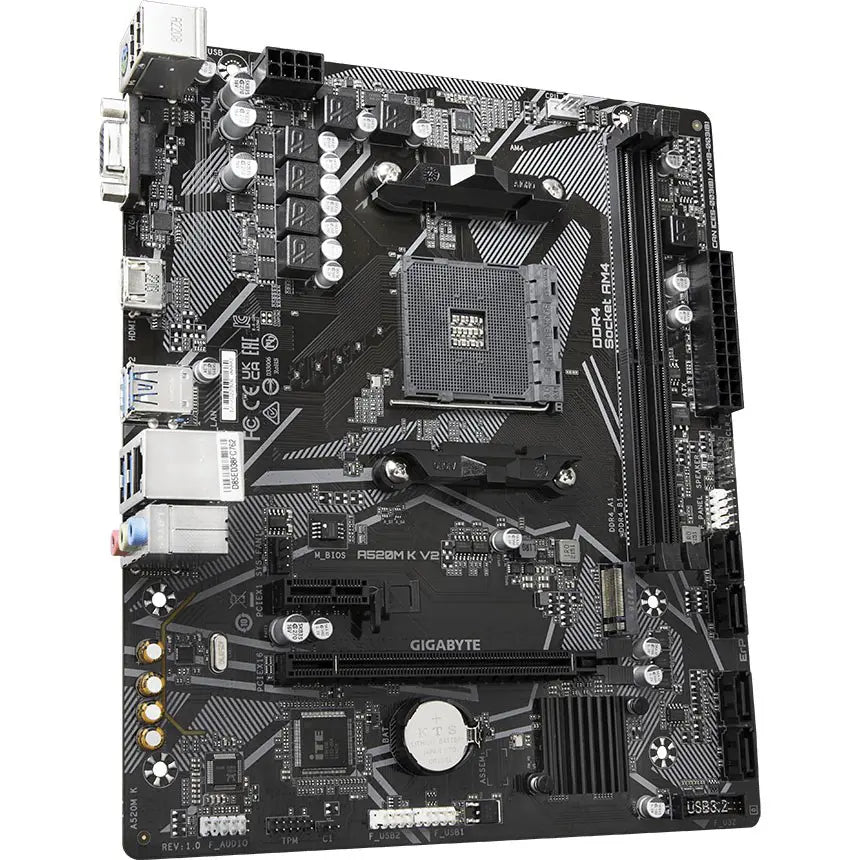

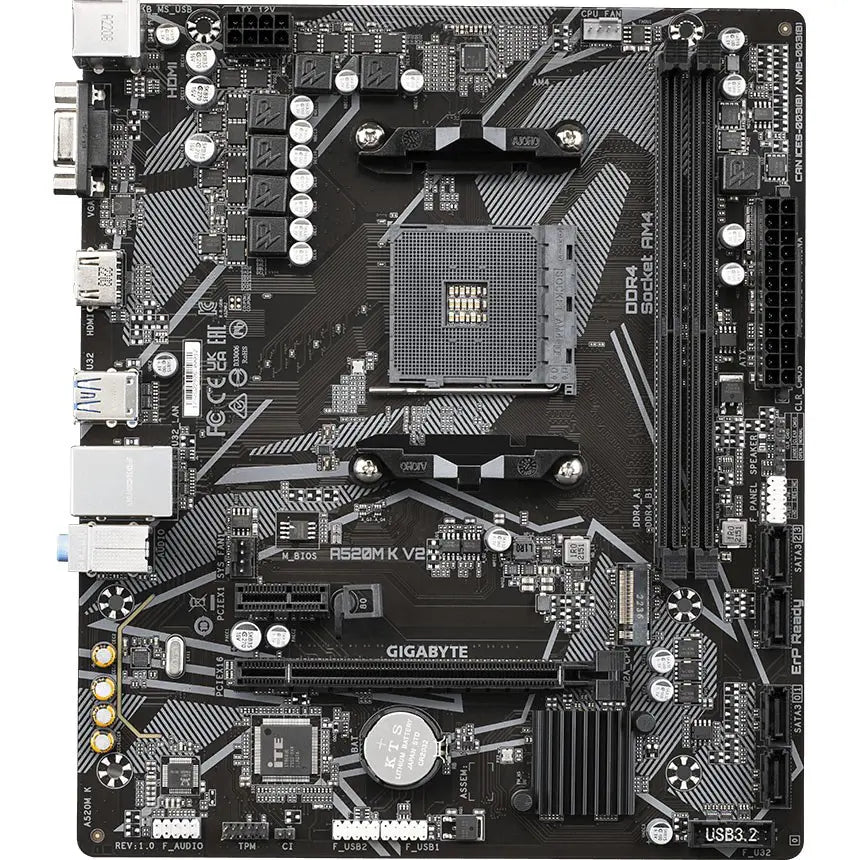

Gigabyte A520M K V2 Motherboard, AMD A520, PCIe Gen3 x4 M.2, Dual Channel DDR4, GbE LAN, 8-Channel HD Audio, HDMI and D-Sub, AM4
Availability:
Warranty:
Brand: Gigabyte
Categories:
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor:
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link:
Shipping
We offer fast and reliable shipping for all our items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
AMD A520 Ultra Durable Design: AMD A520 Ultra Durable motherboard engineered for reliable performance with support for a wide range of AMD Ryzen processors
Wide Ryzen Processor Support: Supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000 and Ryzen 3000 G-Series processors
High-Speed Storage Expansion: PCIe Gen3 x4 M.2 slot with PCIe NVMe and SATA mode support for fast and flexible storage options
Stable Dual Channel DDR4: Dual channel ECC and non-ECC unbuffered DDR4 with 2 DIMMs for efficient and stable system memory configuration
Enhanced Network and Audio: GbE LAN with bandwidth management and 8-channel HD audio with high quality audio capacitors for smooth networking and immersive sound

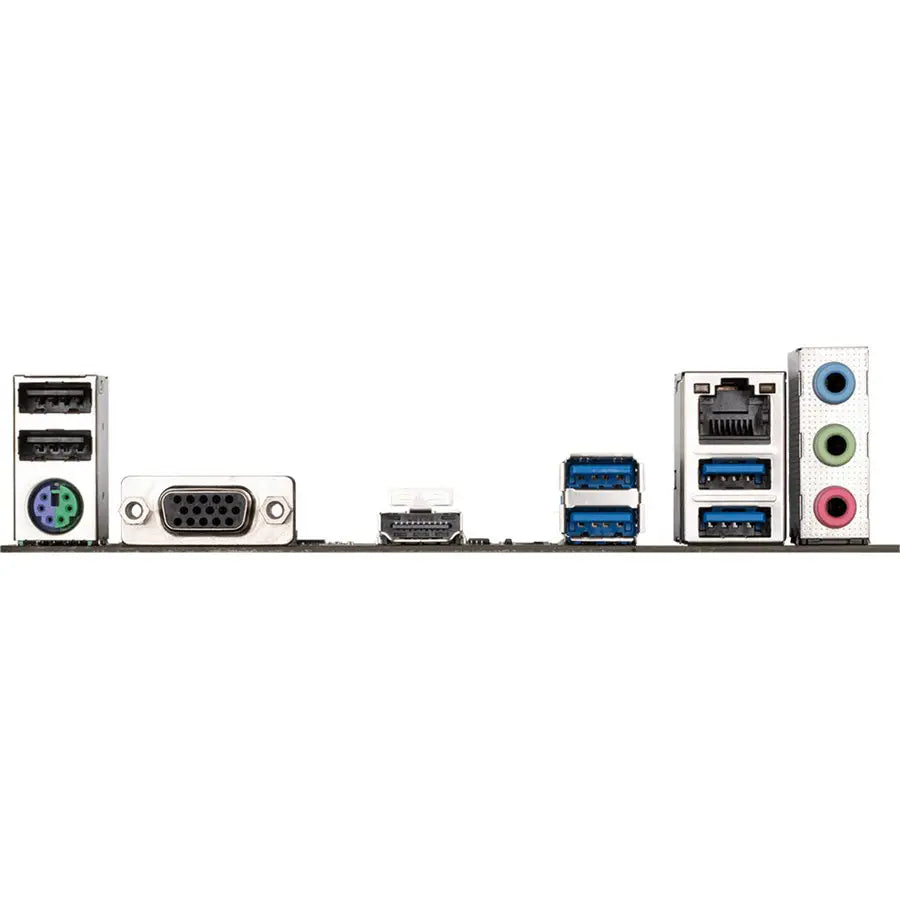

Multi-Display Connectivity: Rear HDMI and D-sub outputs enable convenient multi-display support for versatile visual setups
Advanced Cooling Control: Smart Fan 5 with multiple temperature sensors and hybrid fan headers with FAN STOP for optimized cooling and noise control
Easy Software Management: GIGABYTE APP Center provides simple and easy use of various utilities and tools for system management
Product Specifications
General
Model: Gigabyte A520M K V2 Motherboard Rev 1.1
Chipset: AMD A520 Ultra Durable Motherboard
Processor Support
Supported CPUs: AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000 and Ryzen 3000 G-Series Processors
Memory
Memory Type: Dual Channel ECC and Non-ECC Unbuffered DDR4
Memory Slots: 2 DIMMs
Expansion and Storage
M.2 Slot: PCIe Gen3 x4 M.2 With PCIe NVMe and SATA Mode Support
Networking
LAN: GbE LAN With Bandwidth Management
Audio and Display
Audio: 8-Channel HD Audio With High Quality Audio Capacitors
Display Outputs: Rear HDMI and D-sub For Multi-Display Support
Cooling and Management
Cooling: Smart Fan 5 With Multiple Temperature Sensors and Hybrid Fan Headers With FAN STOP
Software: GIGABYTE APP Center, Simple and Easy Use
