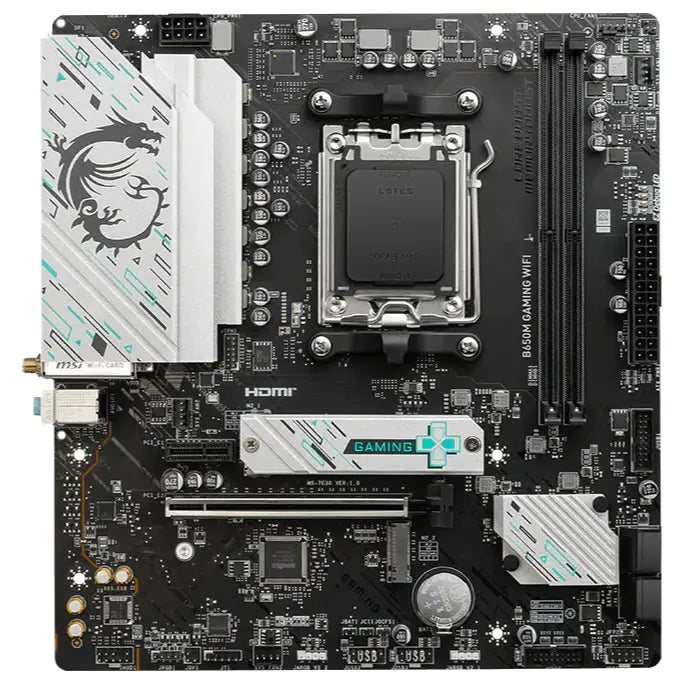

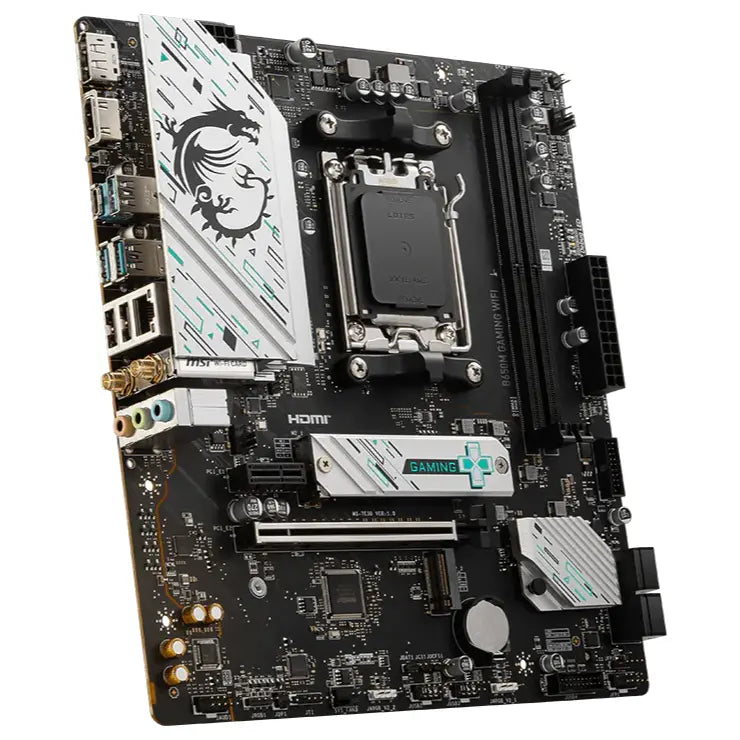

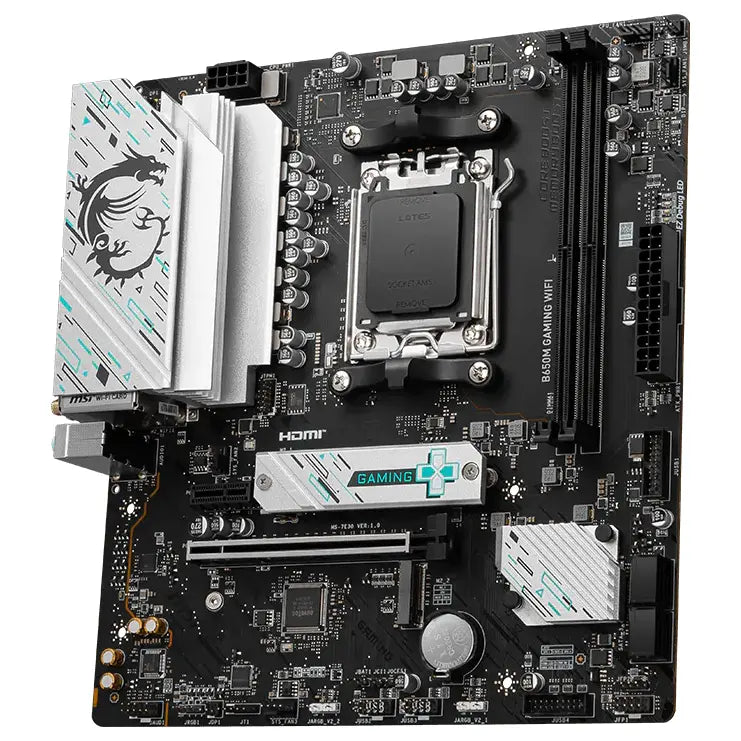

MSI B650M GAMING WIFI Motherboard, AMD B650 Chipset, Socket AM5, DDR5 Up To 7800+(OC)MHz, Wi-Fi 6E, Bluetooth 5.3
  • MSI B650M GAMING WIFI Motherboard, AMD B650 Chipset, Socket AM5, DDR5 Up To 7800+(OC)MHz, Wi-Fi 6E, Bluetooth 5.3
  • MSI B650M GAMING WIFI Motherboard, AMD B650 Chipset, Socket AM5, DDR5 Up To 7800+(OC)MHz, Wi-Fi 6E, Bluetooth 5.3
  • MSI B650M GAMING WIFI Motherboard, AMD B650 Chipset, Socket AM5, DDR5 Up To 7800+(OC)MHz, Wi-Fi 6E, Bluetooth 5.3
  • MSI B650M GAMING WIFI Motherboard, AMD B650 Chipset, Socket AM5, DDR5 Up To 7800+(OC)MHz, Wi-Fi 6E, Bluetooth 5.3
  • MSI B650M GAMING WIFI Motherboard, AMD B650 Chipset, Socket AM5, DDR5 Up To 7800+(OC)MHz, Wi-Fi 6E, Bluetooth 5.3
MSI B650M GAMING WIFI Motherboard, AMD B650 Chipset, Socket AM5, DDR5 Up To 7800+(OC)MHz, Wi-Fi 6E, Bluetooth 5.3

MSI B650M GAMING WIFI Motherboard, AMD B650 Chipset, Socket AM5, DDR5 Up To 7800+(OC)MHz, Wi-Fi 6E, Bluetooth 5.3

Rs.44,800
Rs.44,800

Build a fast, stable AMD AM5 gaming PC with strong power delivery and high-speed DDR5 support for smooth everyday use and upgrades. Stay connected without extra cards thanks to built-in Wi-Fi 6E, Bluetooth 5.3, and 2.5Gbps LAN.
Supports AMD Ryzen 9000, 8000, and 7000 Series, Socket AM5
2x DDR5, Up To 128GB, Up To 7800+(OC)MHz, Dual-Channel
2x M.2 PCIe 4.0 x4 and 4x SATA 6G, RAID 0/1/10
Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN, HDMI 2.1 and DP 1.4

Availability:

Warranty:

Brand: MSI

Categories:

Battery:

Curved:

Display Size:

Graphics:

Monitor Type:

Processor:

RAM Capacity:

Refresh Rate:

Resolution:

Series:

Storage:

Sync Technology:

Manufacturer's Link:

Estimated delivery: 2 - 5 days across the country.

Shipping

We offer fast and reliable shipping for all our items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
  • We do not accept returns under any circumstances.
  • We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
  • Opened or used items are not eligible for exchange.
  • Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.

Product Features

AMD AM5 CPU Support: Build around AMD Ryzen 9000, 8000, or 7000 Series Desktop Processors on Socket AM5 for a modern desktop platform. This makes it easier to plan a new system or upgrade while staying on the same socket. With Core Boost and a premium layout with digital power design, the board is designed to support more cores and help deliver better performance.

High-Speed DDR5 Memory Experience: Push memory performance with DDR5 support up to 7800+(OC)MHz and up to 128GB across 2 slots. Memory Boost technology focuses on delivering pure data signals for better performance, stability, and compatibility. Dual-Channel mode and AMD EXPO support help you tune memory behavior for the way you use your PC.

Fast Storage and Expansion for Gaming: Enjoy a lightning fast game experience with a PCIe 4.0 slot and Lightning Gen4 M.2 support. Two M.2 slots (PCIe 4.0 x4) support 2280 devices, giving you flexible NVMe storage options. Steel Armor helps protect VGA cards against bending and EMI, improving strength and stability during long gaming sessions.

Built-In Wireless and Audio Immersion: Connect easily with integrated Wi-Fi 6E and Bluetooth 5.3, with the wireless module pre-installed in the M.2 (Key-E) slot. MU-MIMO TX/RX and support for multiple bandwidths across 2.4GHz, 5GHz, and 6GHz bands help keep your connection responsive. AUDIO BOOST paired with the Realtek ALC897 codec delivers 7.1-channel high definition audio for a more immersive gaming experience.

Product Specifications

Model: MSI B650M GAMING WIFI

Chipset: AMD B650

CPU Support: Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors

Socket: AM5

Form Factor: mATX

PCB: 6-layer PCB made by 2oz thickened copper

Dimensions: 226mm x 243.84mm

Memory Slots: 2x DDR5

Max Memory: 128GB

Memory Support: DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC)MHz

Max Overclocking Frequency: 1DPC 1R up to 7800+MHz, 1DPC 2R up to 6400+MHz

Memory Features: Dual-Channel, non-ECC un-buffered, AMD EXPO

Onboard Graphics Outputs: 1x HDMI, 1x DisplayPort

HDMI: HDMI 2.1, maximum resolution 4K 60Hz

DisplayPort: DP 1.4, maximum resolution 4K 60Hz

Expansion Slots: 1x PCI-E x16 slot, 1x PCI-E x1 slot

PCI_E1: PCIe 3.0 supports up to x1 (From Chipset)

PCI_E2: PCIe 4.0 supports up to x16 (From CPU)

PCIe Lane Support Notes: x16/x4 for Ryzen 9000/7000, x8/x4 for Ryzen 8700/8600/8400, x4/x4 for Ryzen 8500/8300

Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio

Storage: 2x M.2, 4x SATA 6G

M.2_1: From CPU, PCIe 4.0 x4, supports 2280 devices

M.2_2: From CPU, PCIe 4.0 x4, supports 2280 devices

M.2_2 Note: Unavailable when using Ryzen 8500/8300 Series processor

RAID: RAID 0/1/10 for SATA storage devices, RAID 0/1/10 for M.2 NVMe storage devices

USB (Rear): 2x USB 2.0, 3x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

USB (Front): 4x USB 2.0, 4x USB 5Gbps Type-A

LAN: Realtek RTL8125BG 2.5Gbps LAN

Wireless LAN: Wi-Fi 6E, MU-MIMO TX/RX, 802.11 a/b/g/n/ac/ax

Wireless Module: Pre-installed in M.2 (Key-E) slot

Wireless Bandwidth Support: 20MHz, 40MHz, 80MHz, 160MHz in 2.4GHz/5GHz/6GHz bands

Bluetooth: Bluetooth 5.3

Internal IO: 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 2x Addressable V2 RGB LED (JARGB_V2), 1x RGB LED (JRGB), 1x TPM pin header (TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type-A ports

LED Feature: 4x EZ Debug LED

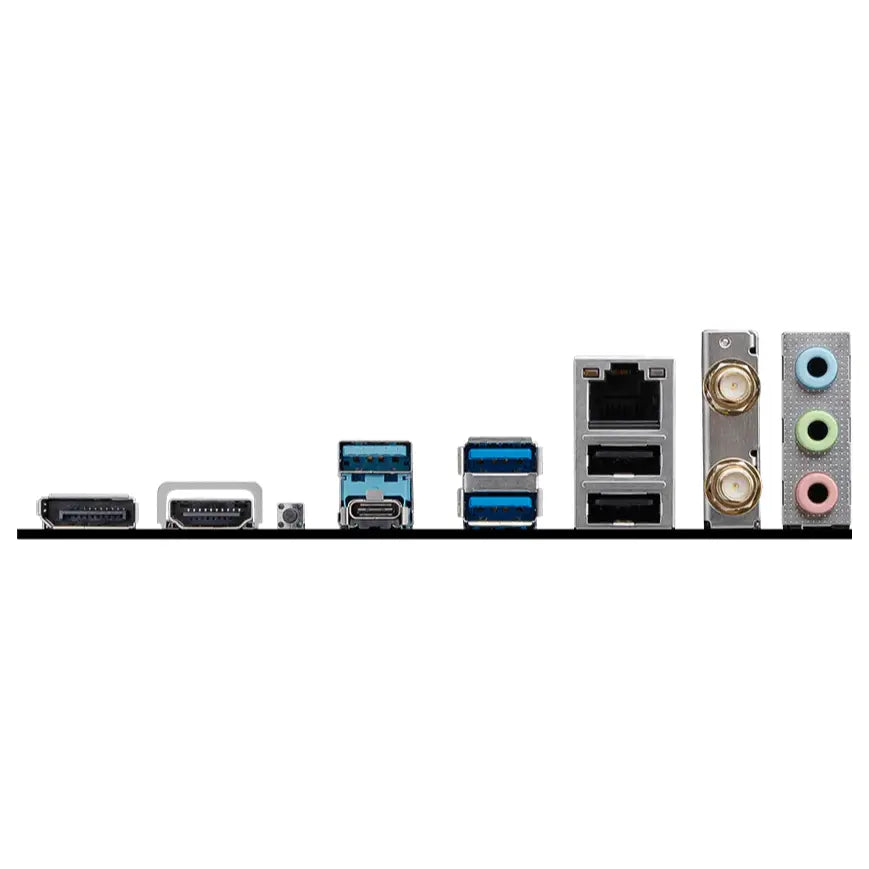

Back Panel Ports: DisplayPort, HDMI, USB 3.2 Gen 1 5Gbps (Type-A), 2.5G LAN, Wi-Fi/Bluetooth, Audio connectors, Flash BIOS Button, USB 3.2 Gen 1 5Gbps (Type-C), USB 3.2 Gen 1 5Gbps (Type-A), USB 2.0

Operating System Support: Windows 11 64-bit, Windows 10 64-bit
