MSI PRO A620AM-B EVO Motherboard, Socket AM5, AMD A620A Chipset, DDR5 6800+MT/s OC, PCIe 4.0 x16, Gen 4 x4 M.2, 2.5G LAN, mATX
  • MSI PRO A620AM-B EVO Motherboard, Socket AM5, AMD A620A Chipset, DDR5 6800+MT/s OC, PCIe 4.0 x16, Gen 4 x4 M.2, 2.5G LAN, mATX
  • MSI PRO A620AM-B EVO Motherboard, Socket AM5, AMD A620A Chipset, DDR5 6800+MT/s OC, PCIe 4.0 x16, Gen 4 x4 M.2, 2.5G LAN, mATX
  • MSI PRO A620AM-B EVO Motherboard, Socket AM5, AMD A620A Chipset, DDR5 6800+MT/s OC, PCIe 4.0 x16, Gen 4 x4 M.2, 2.5G LAN, mATX
  • MSI PRO A620AM-B EVO Motherboard, Socket AM5, AMD A620A Chipset, DDR5 6800+MT/s OC, PCIe 4.0 x16, Gen 4 x4 M.2, 2.5G LAN, mATX
  • MSI PRO A620AM-B EVO Motherboard, Socket AM5, AMD A620A Chipset, DDR5 6800+MT/s OC, PCIe 4.0 x16, Gen 4 x4 M.2, 2.5G LAN, mATX
MSI PRO A620AM-B EVO Motherboard, Socket AM5, AMD A620A Chipset, DDR5 6800+MT/s OC, PCIe 4.0 x16, Gen 4 x4 M.2, 2.5G LAN, mATX

MSI PRO A620AM-B EVO Motherboard, Socket AM5, AMD A620A Chipset, DDR5 6800+MT/s OC, PCIe 4.0 x16, Gen 4 x4 M.2, 2.5G LAN, mATX

Rs.28,900
Rs.28,900

Boost productivity with a PRO Series motherboard built to support AMD Ryzen 9000, 8000, and 7000 Series desktop processors for smooth multitasking. With DDR5 6800+MT/s (OC), PCIe 4.0, and 2.5G LAN, it is a solid choice for fast, responsive everyday work and builds.
Supports AMD Ryzen 9000, 8000, and 7000 Series, Socket AM5
2x DDR5 Dual Channel, Up to 128GB, Up to 6800+MT/s (OC)
1x PCIe 4.0 x16 Slot and 1x PCIe 3.0 x1 Slot
1x Gen 4 x4 M.2 and 2x SATA 6G, Realtek 2.5G LAN

Availability:

Warranty:

Brand: MSI

Categories:

Battery:

Curved:

Display Size:

Graphics:

Monitor Type:

Processor:

RAM Capacity:

Refresh Rate:

Resolution:

Series:

Storage:

Sync Technology:

Manufacturer's Link:

Estimated delivery: 2 - 5 days across the country.

Shipping

We offer fast and reliable shipping for all our items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
  • We do not accept returns under any circumstances.
  • We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
  • Opened or used items are not eligible for exchange.
  • Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.

Product Features

AMD Ryzen Desktop CPU Support: Build around AMD Ryzen 9000, 8000, and 7000 Series desktop processors on Socket AM5 for a platform focused on productivity and efficiency. This support helps you put together a system that can handle multitasking without feeling held back. With the PRO Series focus, it is designed for users who care about getting work done smoothly. Pair it with the right CPU to match your daily workload and performance needs.

DDR5 Dual-Channel Memory Performance: Run DDR5 memory in dual-channel mode with support for up to 128GB capacity. With DDR5 6800+MT/s (OC) support, the system can be tuned for higher memory speeds when your build calls for it. Memory Boost is designed to deliver pure data signals for performance, stability, and compatibility. This helps keep your system responsive when juggling multiple apps and tasks.

PCIe 4.0 and Gen 4 x4 M.2 Speed: Enjoy a lightning fast experience with a PCIe 4.0 slot and a Lightning Gen 4 x4 M.2 connection for storage. This setup is built to keep your system feeling quick when launching apps and working with large files. Core Boost uses a premium layout and digital power design to support more cores and provide better performance. Together, these features help create a snappy, dependable PC experience.

Built-In Display Outputs and Audio Experience: Connect displays through HDMI 2.1 with up to 4K 60Hz support and VGA with supported resolutions up to 2048x1536 50Hz, depending on the processor installed. This flexibility can be useful for different monitor setups and work environments. AUDIO BOOST with the Realtek ALC897 codec supports 7.1-channel high definition audio for an immersive listening experience. Steel Armor helps protect VGA cards against bending and EMI for better stability and strength.

Product Specifications

Model: MSI PRO A620AM-B EVO

Chipset: AMD A620A

CPU Support: Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors

Socket: AM5

Form Factor: mATX

Dimensions: 218mm x 243.84mm

Memory Slots: 2x DDR5

Max Memory: 128GB

Memory Support: DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Max Overclocking Frequency: 1DPC 1R up to 6800+MT/s, 1DPC 2R up to 6000+MT/s

Memory Features: AMD POR Speed and JEDEC Speed, Memory Overclocking and AMD EXPO, Dual-Channel, Non-ECC Un-buffered, CUDIMM (Clock Driver bypass mode only)

Onboard Graphics Outputs: 1x HDMI, 1x VGA

HDMI Support: HDMI 2.1, up to 4K 60Hz

VGA Support: Up to 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Expansion Slots: 1x PCI-E x16, 1x PCI-E x1

PCI_E1: PCIe 4.0 supports up to x16 (From CPU)

PCI_E2: PCIe 3.0 supports up to x1 (From Chipset)

PCI-E x16 Lane Support: x16 (Ryzen 9000 and 7000), x8 (Ryzen 8700/8600/8400), x4 (Ryzen 8500/8300)

Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio

Storage: 1x M.2, 2x SATA 6G

M.2 Slot: M.2_1 (From CPU) up to PCIe 4.0 x4, supports 2280/2260 devices

M.2_1 CPU Series Support: Up to PCIe 4.0 x4 (Ryzen 9000/8700/8600/8400/7000), up to PCIe 4.0 x2 (Ryzen 8500/8300)

RAID: RAID 0 and RAID 1 for SATA storage devices

LAN: Realtek RTL8125 2.5G LAN

Rear USB: 2x USB 2.0, 4x USB 5Gbps Type-A

Front USB: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

Internal IO: ATX_PWR, CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD), Com Port (JCOM), Addressable V2 RGB (JARGB_V2), RGB (JRGB), TPM pin header (TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type-A ports, 1x USB 5Gbps Type-C ports

LED Feature: 4x EZ Debug LED, 1x EZ Memory Detection LED

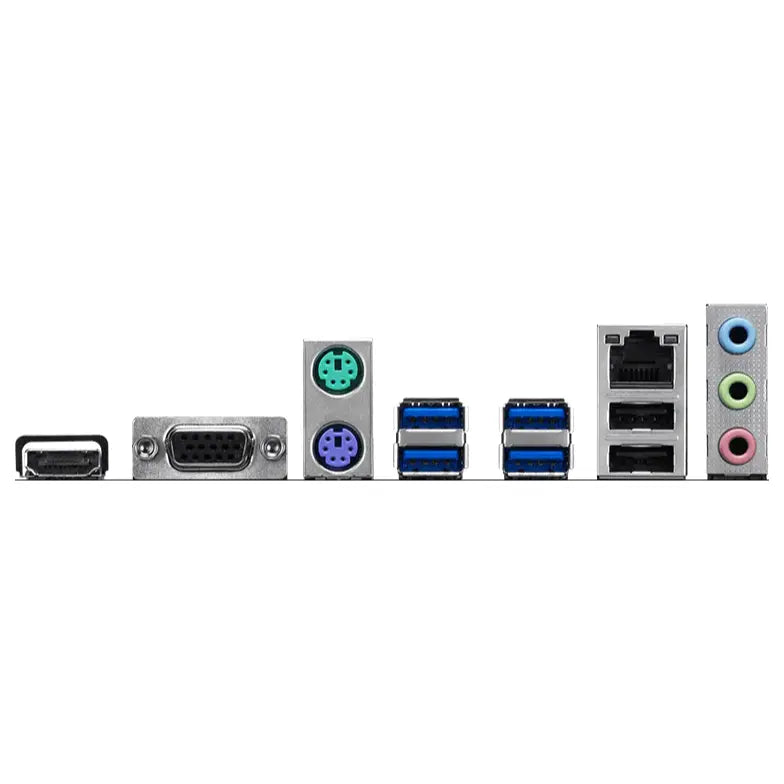

Back Panel Ports: HDMI, VGA, Keyboard/Mouse, USB 5Gbps Type-A, LAN port, Audio connectors, USB 2.0

Operating System Support: Windows 11 64-bit, Windows 10 64-bit

Box Content: PCB Info
