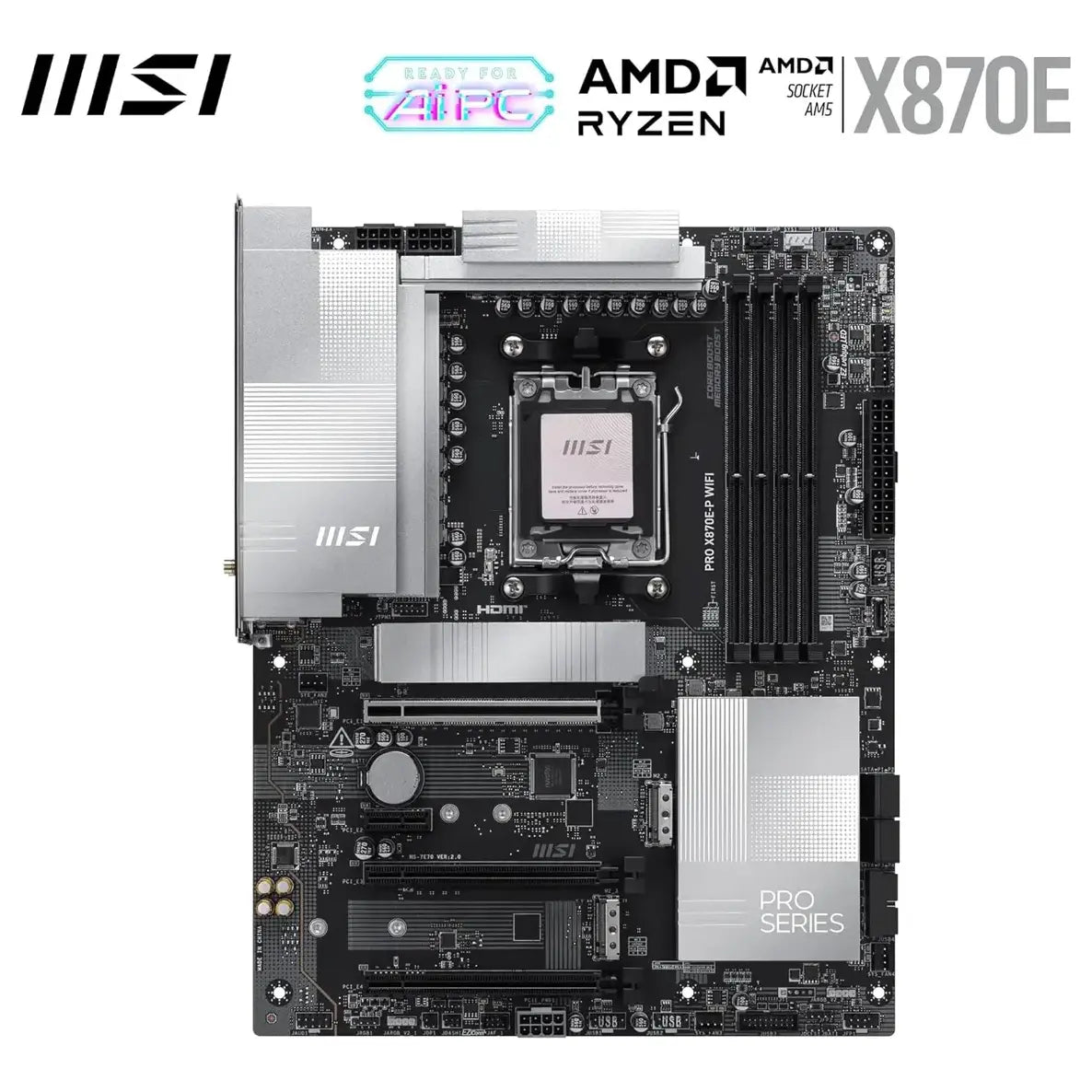

MSI PRO X870E-P WIFI Motherboard ATX AM5, Wi-Fi 7, 5G LAN
Availability:
Warranty:
Brand: MSI
Categories:
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor:
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link:
Shipping
We offer fast and reliable shipping for all our items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
Designed for AMD Ryzen 9000/8000/7000 series desktop processors on the AM5 socket in an ATX form factor, built around the AMD X870E chipset
Supports DDR5 memory with 4 DIMM slots in dual channel, featuring Memory Boost and up to 8200+MT/s OC for overclocking-focused performance
Delivers strong CPU power handling with a 14 Duet Rail Power System using 60A SPS, plus 2 Phase SOC Power and 1 Phase MISC Power
Keeps components cooler with Frozr Guard Extended Heatsink design and EZ M.2 Shield Frozr II for improved thermal dissipation
Enables high-speed expansion with a fortified PCIe 5.0 x16 slot with Steel Armor and additional PCIe slots for add-in cards
Supports fast storage with Lightning Gen5 and Gen4 M.2 slots, including a Gen5 x4 128Gbps slot and Gen4 x4 64Gbps slots
Connects easily with Ultra Connect features including USB4 Type-C 40Gbps, Realtek 5G LAN, full-speed Wi-Fi 7 solution, and Bluetooth 5.4
Simplifies building and upgrades with EZ DIY features including EZ PCIe Clip II, EZ M.2 Clip II, EZ M.2 Shield Frozr II, and EZ Antenna
Provides 8-channel 7.1 HD Audio with Audio Boost for multi-channel audio setups
Product Specifications
Model: PRO X870E-P WIFI
Form Factor: ATX
Socket Type: AM5
Chipset: AMD X870E
CPU Support: AMD Ryzen 9000/8000/7000 Series Desktop Processors
Power Design: 14 Duet Rail Power System, 60A SPS
Power Phases: 2 Phase SOC Power, 1 Phase MISC Power
PWM: Digital PWM IC

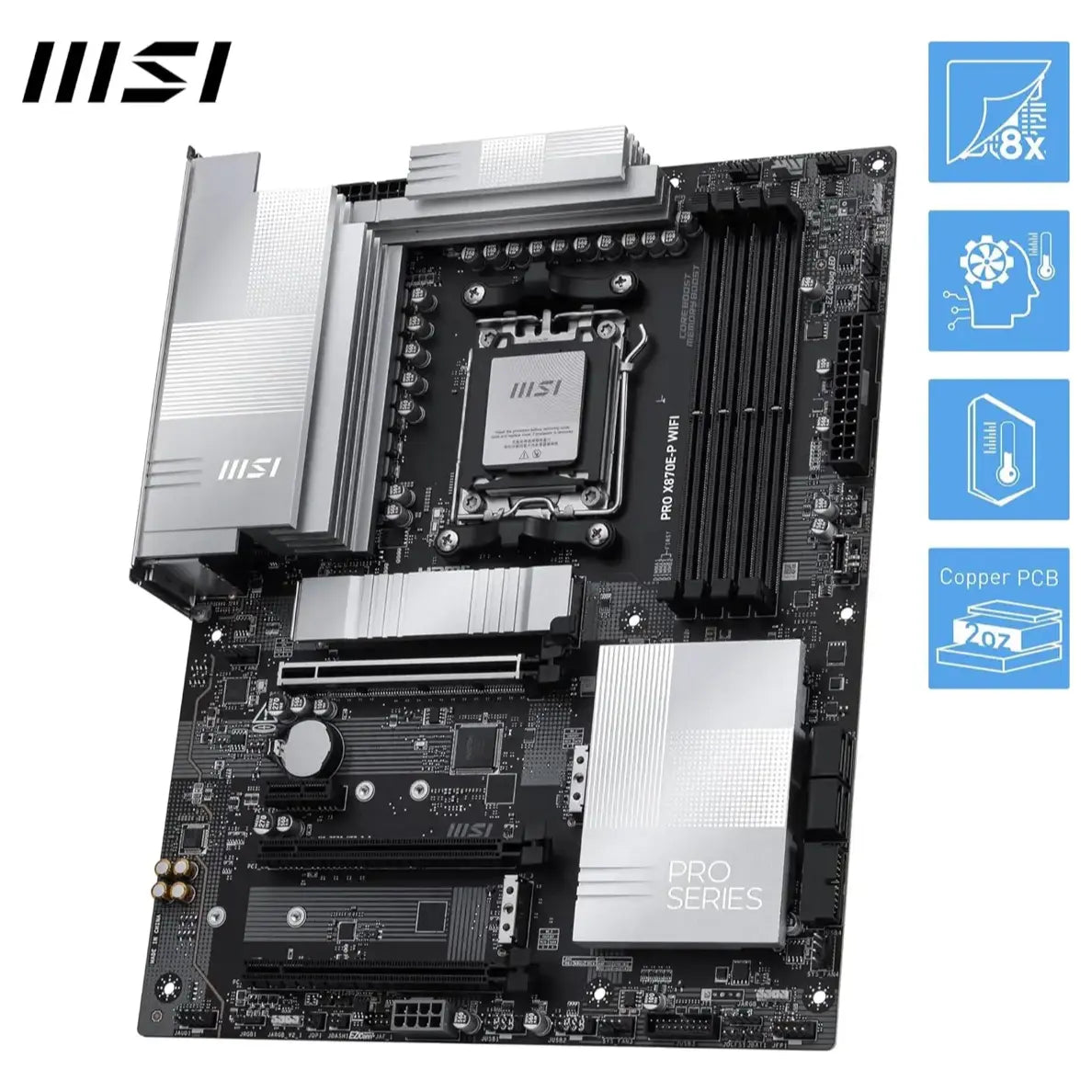

PCB: 8-layer PCB, Server Grade PCB material

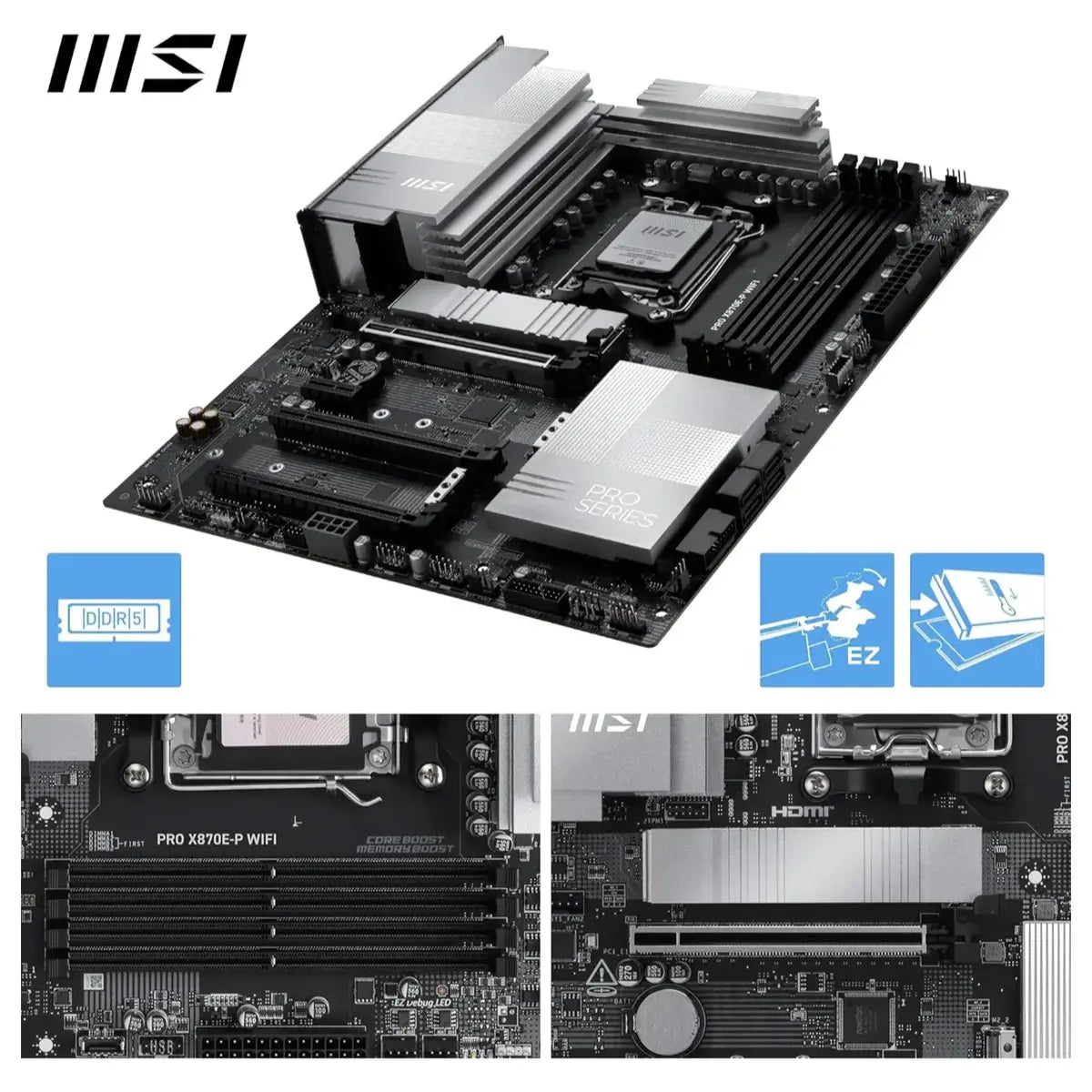

Memory Slots: 4x DDR5 DIMMs
Memory Support: Dual Channel, 256GB Max., 8200+MT/s OC
Memory Features: Memory Boost, High-Efficiency Mode, EXPO Profiles, supports AMD EXPO
PCIe Slots: 1x PCIe 5.0/4.0/3.0 x16 with Steel Armor, 1x PCIe 4.0/3.0 x16, 2x PCIe 3.0 x1

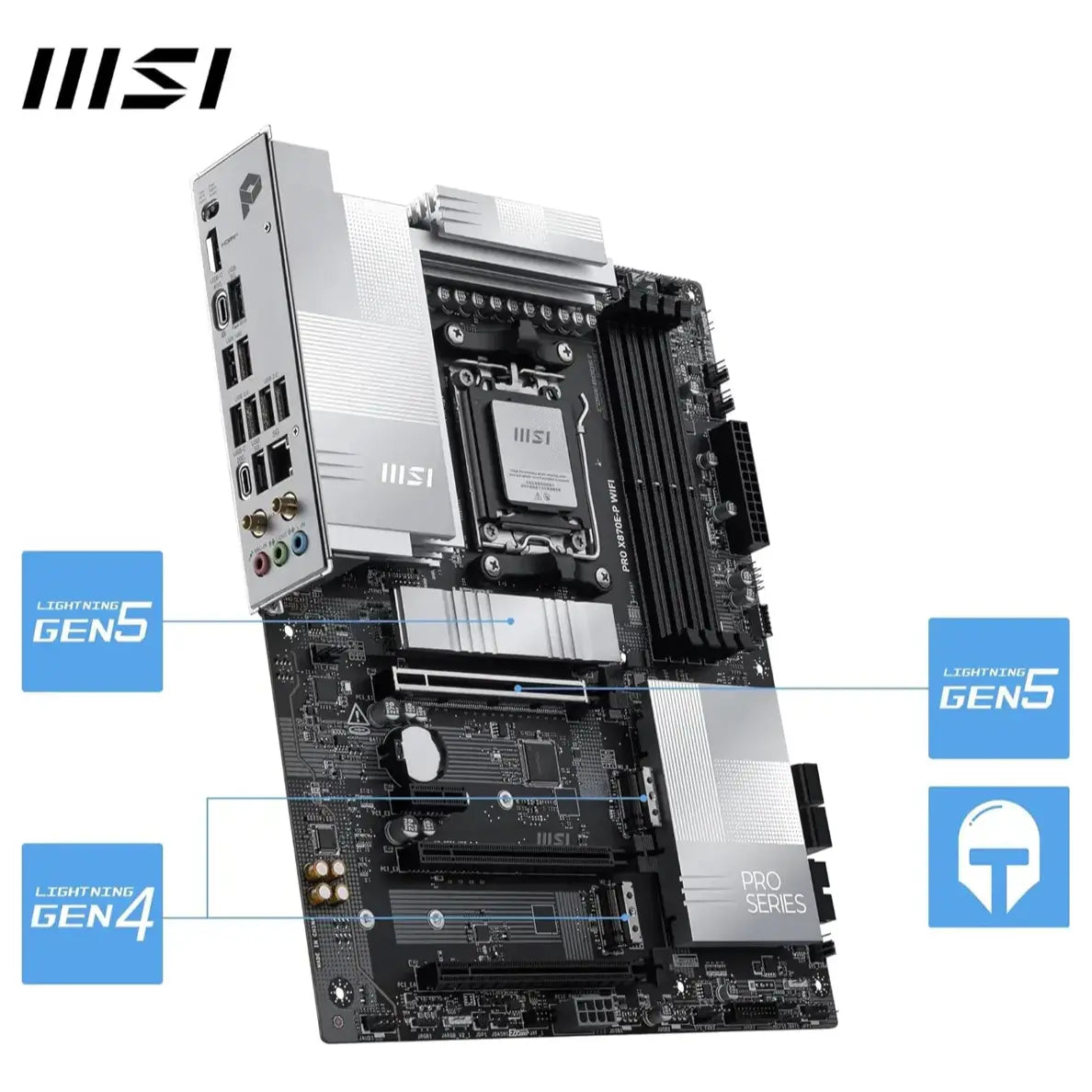

M.2 Slots: 1x Gen5 x4 128Gbps with EZ M.2 Shield Frozr II, 2x Gen4 x4 64Gbps

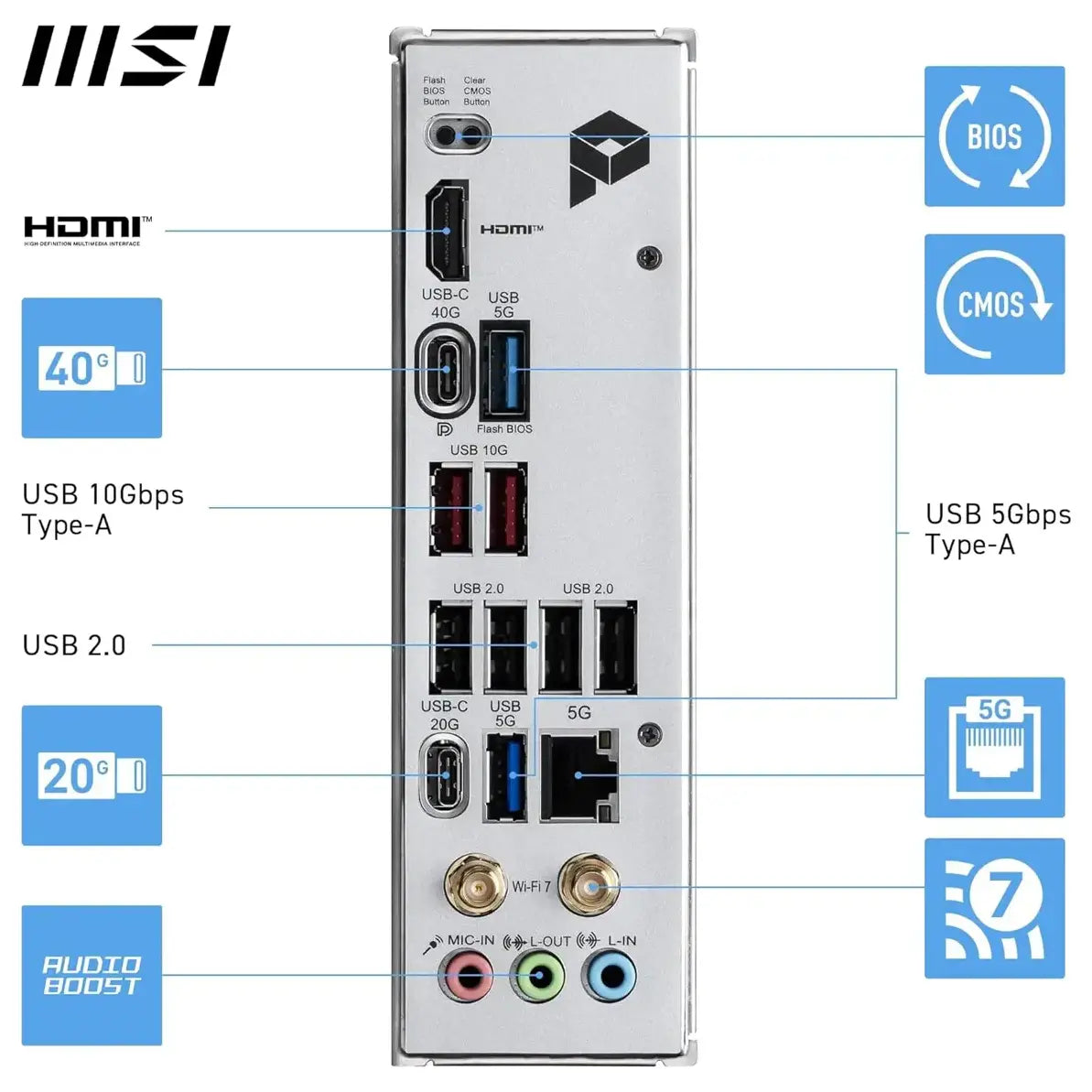

USB: USB4 Type-C 40Gbps
USB4 Display Support: 4K/60Hz
LAN: Realtek 5G LAN
Wireless: Wi-Fi 7
Bluetooth: Bluetooth 5.4
Audio: 8-Channel 7.1 HD Audio with Audio Boost
Cooling Headers: CPU fan header 2A, Combo fan 3A supports both pump fan and system fan, system fans
EZ DIY: EZ PCIe Clip II, EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna
