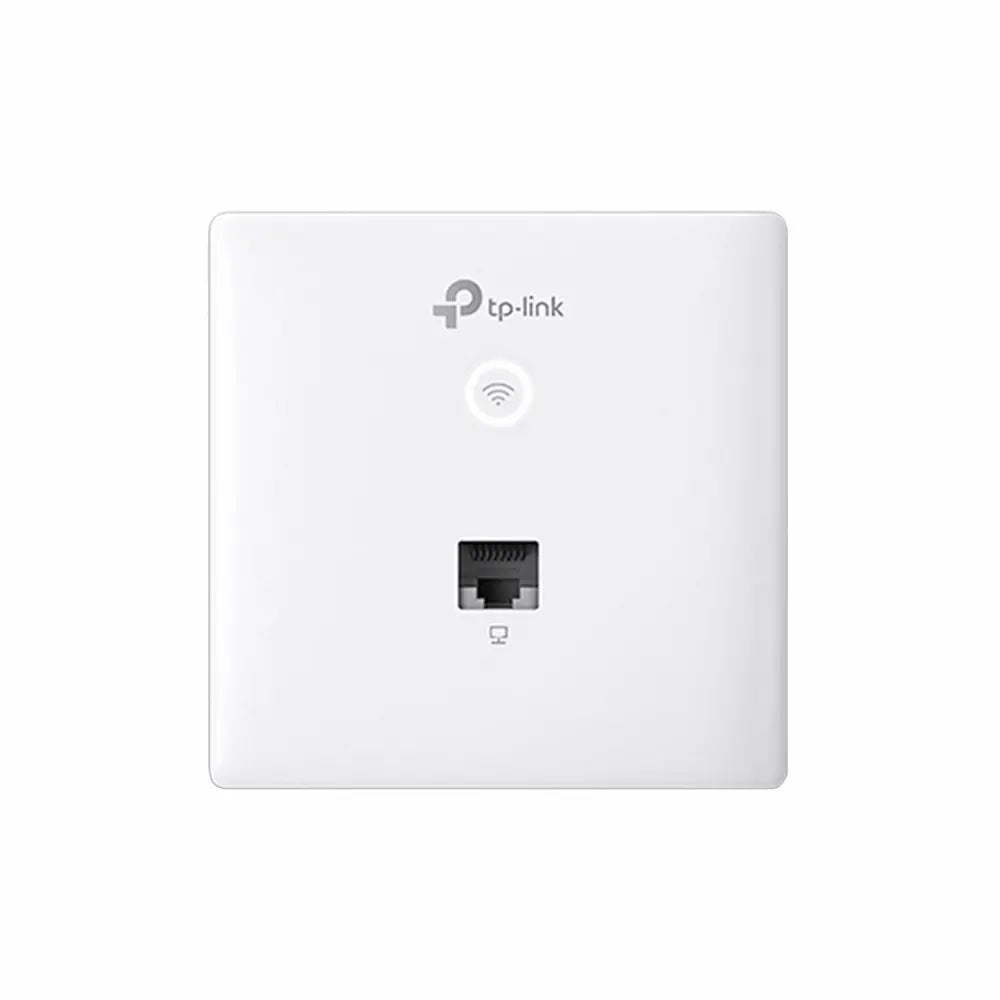

TP-Link EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point, 300Mbps 2.4GHz and 867Mbps 5GHz, 2 Gigabit Ethernet Ports, 802.3af/at PoE Support

Product Features

Bring reliable Wireless connectivity to individual rooms with a wall-plate access point built for environments like hotels, offices, and dormitories. By placing Wi-Fi right where people use it, coverage feels more consistent and each room can have its own private connection experience. The elegant wall-plate form factor helps keep installations neat and professional without cluttering desks or ceilings. Daily use feels simple because the access point is designed to fit naturally into the room layout.

Enjoy fast Dual-Band Wi-Fi with simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz for a combined 1,167Mbps, enhanced with MU-MIMO. This helps multiple devices stay connected more smoothly, which is especially helpful when guests or staff are streaming, browsing, and working at the same time. Having both bands available lets devices connect on the frequency that best matches their needs. The result is a more responsive experience across busy rooms and shared spaces.

Keep wired devices and backhaul connections simple with 2 Gigabit Ethernet ports, including 1 uplink and 1 downlink. That extra downlink port makes it easy to connect a nearby device without needing an additional switch in the room. Gigabit speeds help support demanding tasks and reduce bottlenecks when multiple users are active. Everything stays tidy because the ports are integrated directly into the wall-plate unit.

Manage the network with Omada SDN features like Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring, plus convenient control through cloud access and the Omada app. This makes it easier to deploy and oversee multiple access points across many rooms without constant on-site adjustments. Centralized management helps keep settings consistent and simplifies ongoing changes. Monitoring tools support smoother operations by helping you stay aware of network behavior.

Install cleanly with an easy-mount construction designed for 86mm and EU standard junction boxes, and power it using 802.3af/at PoE support. PoE reduces cable clutter by delivering power through the Ethernet connection, which can simplify room-by-room rollouts. The unprecedented thin 11mm design matches the size and shape of a light switch or power outlet faceplate, helping it blend into almost any room. This combination makes upgrades feel less intrusive while keeping the setup professional.

Offer visitors a safer experience with a Secure Guest Network supported by multiple authentication options such as SMS and Voucher, along with abundant wireless security technologies. This helps separate guest access needs from other users while keeping entry more controlled. Authentication options can make it easier to manage who connects and when. Overall, it supports a more organized and secure Wi-Fi experience in shared environments.

Product Specifications

Brand and Model: TP-Link EAP230-Wall

Product Type: Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

Wi-Fi Speed: 300Mbps on 2.4GHz and 867Mbps on 5GHz, total 1,167Mbps

Wi-Fi Technology: MU-MIMO

Ethernet Ports: 2 Gigabit Ethernet ports (1x uplink plus 1x downlink)

Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, Intelligent Monitoring

Management: Cloud access and Omada app

Use Case: Numerous separated rooms such as hotels, offices, and dormitories

Design: 11mm thin, same size and shape as a light switch or power outlet faceplate

Installation: Easy-mount construction, compatible with 86mm and EU standard junction box

Power: 802.3af/at PoE support

Guest Network: Multiple authentication options (SMS/Voucher, etc.) and wireless security technologies
