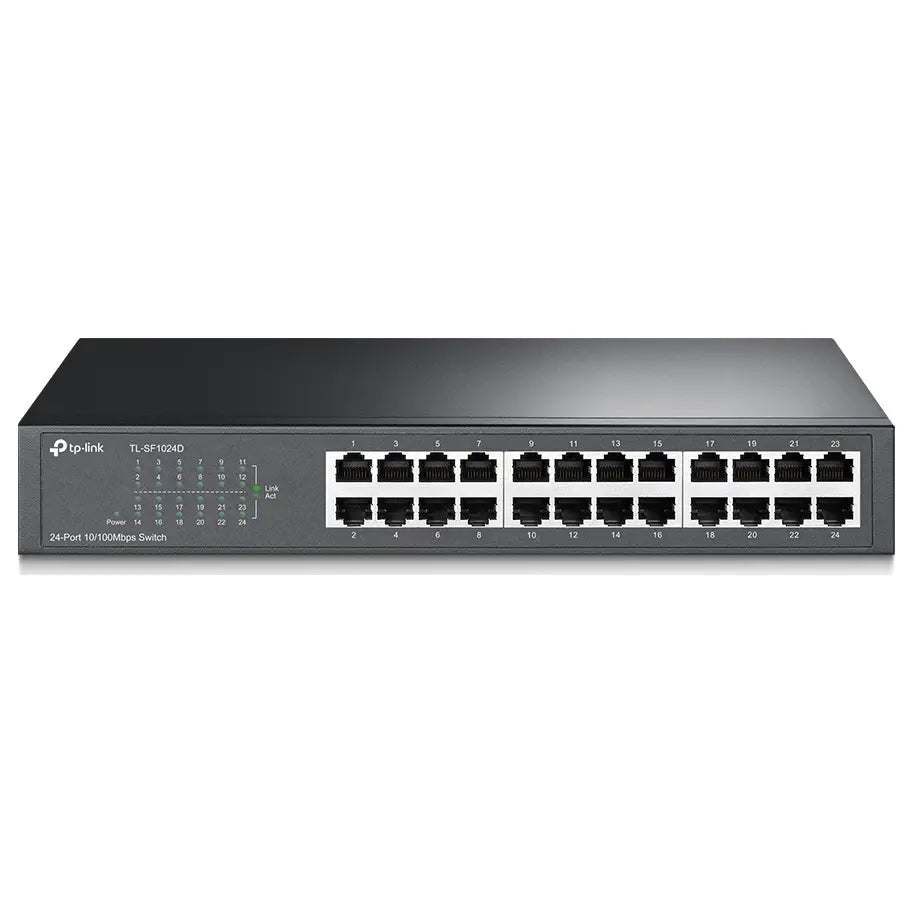

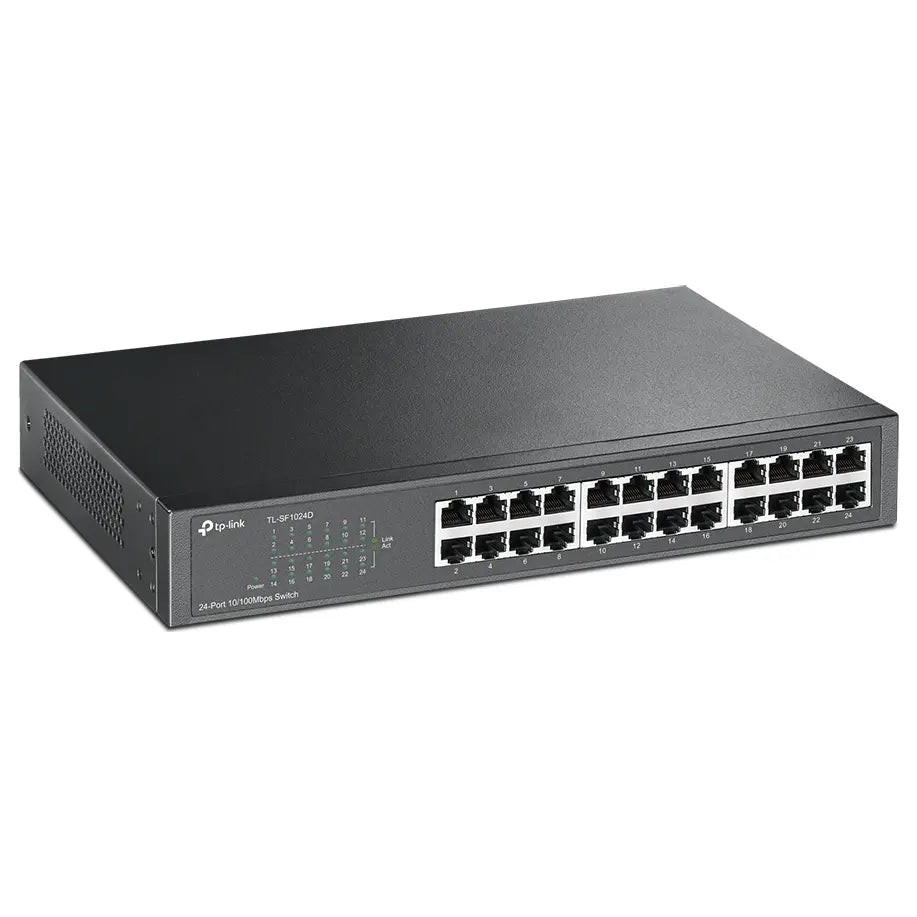

TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop and Rackmount Switch
Availability:
Warranty:
Brand: TP-Link
Categories:
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor:
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link:
Shipping
We offer fast and reliable shipping for all our items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
Fast, Simple Network Upgrade: Provides a seamless upgrade from an older network to a 100Mbps network with 24 10/100Mbps RJ45 ports
Plug and Play Setup: Supports Auto MDI/MDIX on all ports so you do not need to worry about cable type
Energy-Efficient Operation: Innovative energy-efficient technology saves power up to 75%
Reliable Switching: Uses Store-and-Forward transmission method and supports MAC address self-learning
Quiet, Flexible Installation: Fanless design in a standard 13-inch steel case, built for desktop or rack mounting
Product Specifications
Model: TL-SF1024D
Product Type: 24-Port 10/100Mbps Desktop and Rackmount Switch
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface: 24 10/100Mbps RJ45 Ports Auto Negotiation and Auto MDI/MDIX
Network Media: 10BASE-T UTP category 3, 4, 5 cable maximum 100m
Network Media: 100BASE-TX UTP category 5, 5e or above cable maximum 100m
Switching Capacity: 4.8Gbps
Packet Forwarding Rate: 3.57Mpps
MAC Address Table: 8K
Buffer Memory: 2Mb
Transmission Method: Store-and-Forward
Green Technology: Innovative energy-efficient technology saves power up to 75%
Fan Quantity: Fanless
Physical Security Lock: Yes

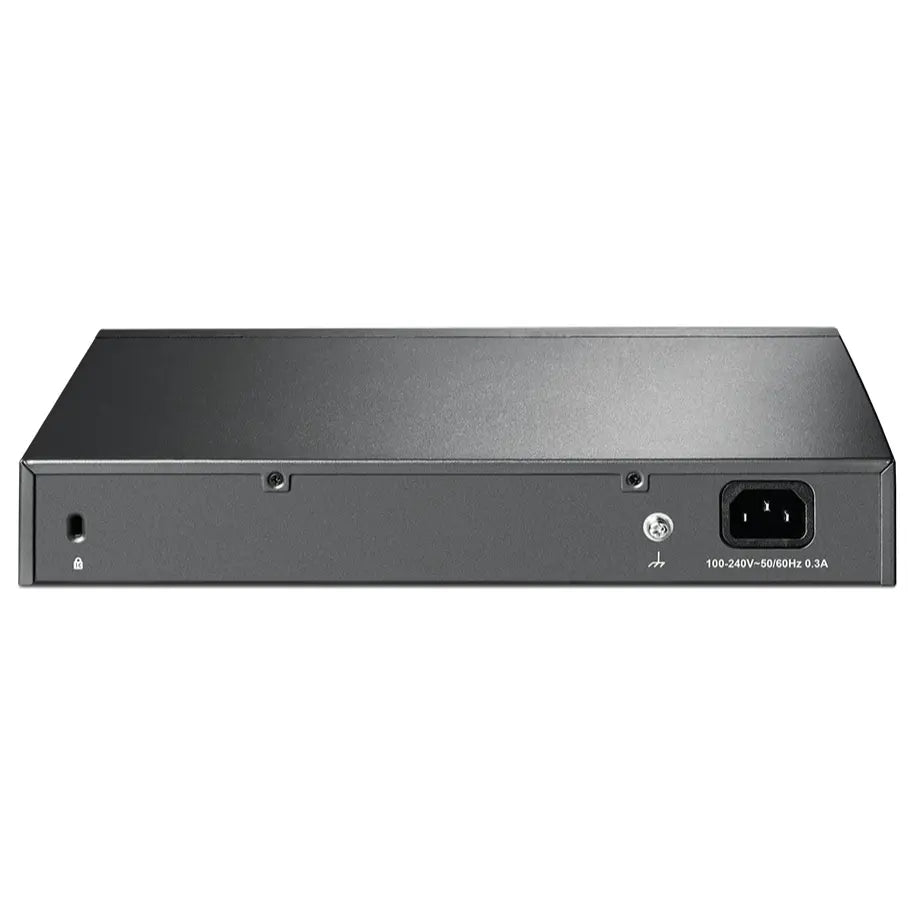

Power Supply: External Power Adapter Output 9VDC/0.6A
Max. Power Consumption: Maximum 3.2W
Max. Power Consumption: 3.19W 220V/50Hz
Max. Heat Dissipation: 10.88BTU/h
Dimensions W x D x H: 11.6*7.1*1.7 in. 294*180*44 mm
Mounting: Rack Mountable
Certification: FCC, RoHS
Package Content: 24-Port 10/100Mbps Desktop and Rackmount Switch
Package Content: Power Cord
Package Content: Installation Guide
Package Content: Rackmount Kit
Package Content: Rubber Feet
Operating Temperature: 0C to 40C 32F to 104F
Storage Temperature: -40C to 70C -40F to 158F
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90%
