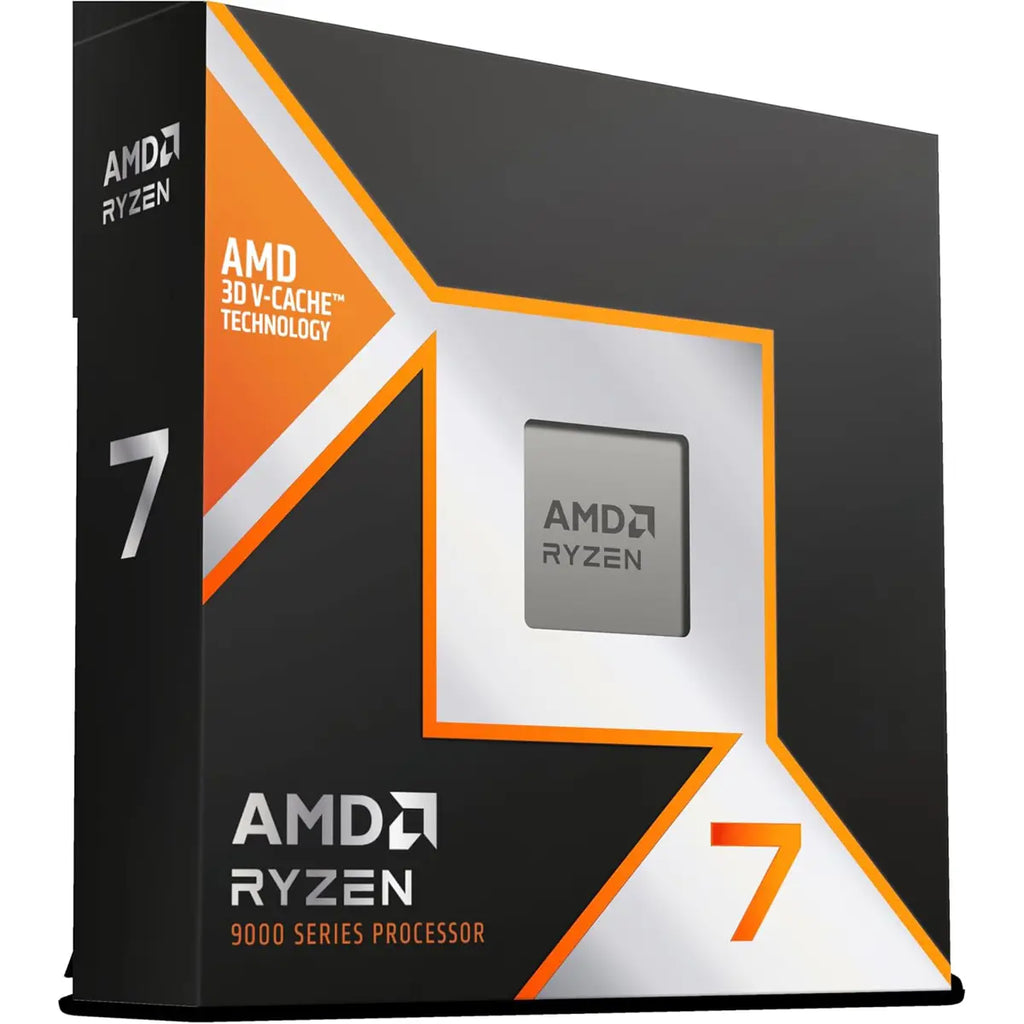

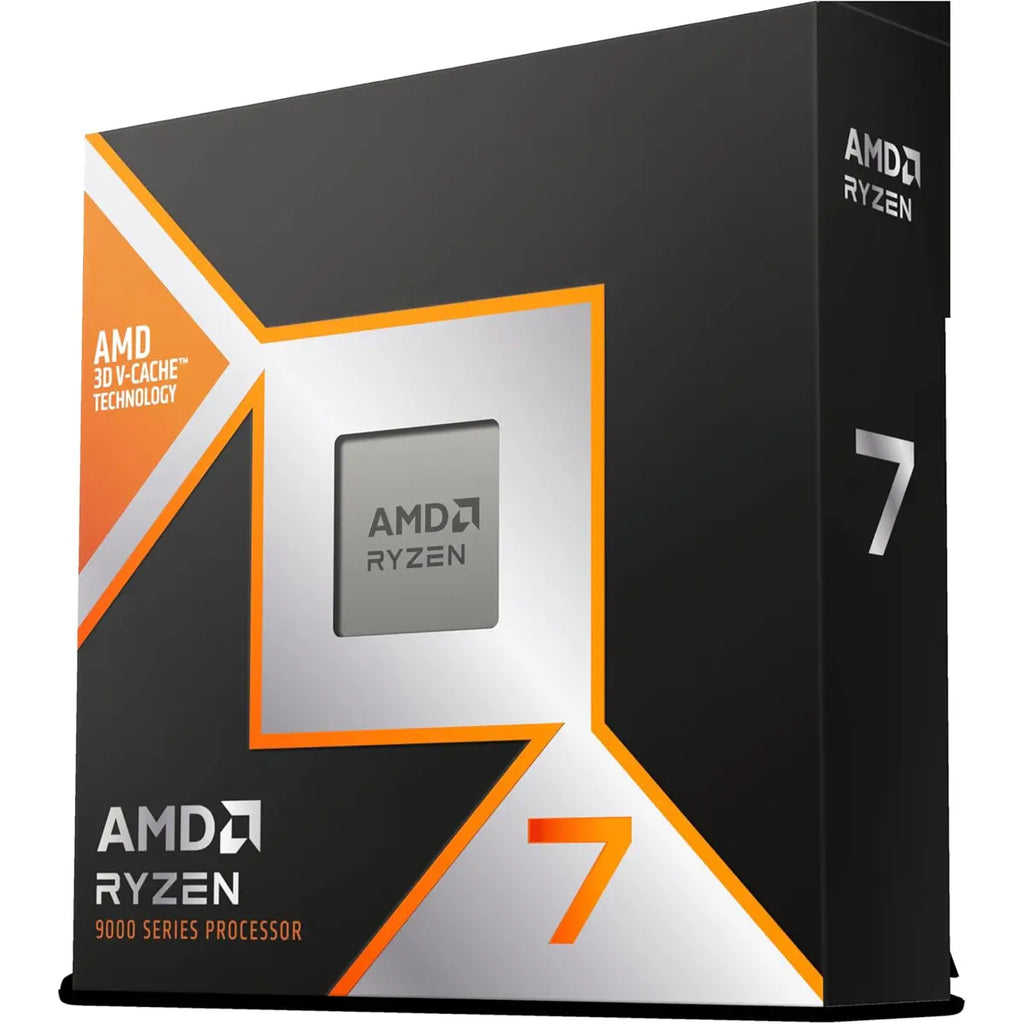

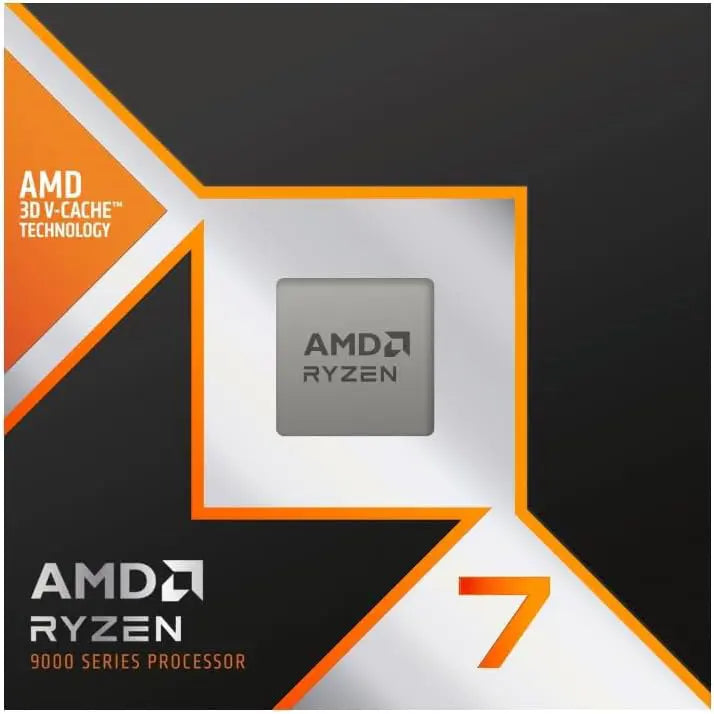

AMD Ryzen 7 9800X3D Desktop Processor, AM5, 8 Cores, 16 Threads, Up To 5.2GHz, Unlocked
Availability: In Stock
Warranty: 10 - Month(s) Warranty
Brand: AMD
Categories: AMD Ryzen 7
Battery:
Curved:
Display Size:
Graphics:
Monitor Type:
Processor: AMD Ryzen 9
RAM Capacity:
Refresh Rate:
Resolution:
Series:
Storage:
Sync Technology:
Manufacturer's Link:
Shipping
We offer fast and reliable shipping for all our clothing items. Orders are processed within 1-2 business days and shipped via standard delivery, which typically takes 2-5 business days.
Return policy
- We do not accept returns under any circumstances.
- We offer exchanges only if the item is returned in its original, sealed packaging and unused within 2 days of delivery.
- Opened or used items are not eligible for exchange.
- Items purchased as pre-order or back-order cannot be exchanged or returned under any condition.
Product Features
Gaming-Focused Performance
AMD Ryzen 7 9800X3D delivers faster gaming with 2nd gen AMD 3D V-Cache technology designed for low latency
High-Speed Desktop Processing
Built on Zen 5 architecture with 8 cores and 16 threads, featuring up to 5.2GHz max boost and 4.7GHz base clock
Overclocking Support
Unlocked for overclocking with support for Precision Boost Overdrive, Curve Optimizer Voltage Offsets, and AMD Ryzen Master
Platform and Memory Support
AM5 socket processor with DDR5 support, dual-channel memory, and up to 192GB max memory
Connectivity and Expansion
Supports PCIe 5.0 with 28 total native PCIe lanes and NVMe boot and RAID support
Product Specifications
General
Name: AMD Ryzen 7 9800X3D
Family: Ryzen
Series: Ryzen 9000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
Regional Availability: Global
Former Codename: Granite Ridge AM5
Launch Date: 11/07/2024
CPU
Processor Architecture: Zen 5
CPU Cores: 8
Threads: 16
Multithreading: Yes
Max Boost Clock: Up To 5.2GHz
Base Clock: 4.7GHz
L1 Cache: 640KB
L2 Cache: 8MB
L3 Cache: 96MB
Default TDP: 120W
Unlocked for Overclocking: Yes
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Process Technology and Package
CPU Core Technology: TSMC 4nm FinFET
I/O Die Technology: TSMC 6nm FinFET
Package Die Count: 2
Socket and Chipset Support
CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
Memory
System Memory Type: DDR5
System Memory Subtype: UDIMM
Memory Channels: 2
Max Memory: 192GB
Max Memory Speed: 2x1R DDR5-5600
Max Memory Speed: 2x2R DDR5-5600
Max Memory Speed: 4x1R DDR5-3600
Max Memory Speed: 4x2R DDR5-3600
ECC Support: Yes (Requires mobo support)
PCI Express and Storage
PCI Express Version: PCIe 5.0
Native PCIe Lanes Total: 28
Native PCIe Lanes Usable: 24
NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
USB
Native USB 3.2 Gen 2 10Gbps: 4
Native USB 2.0 480Mbps: 1
Graphics
Graphics Model: AMD Radeon Graphics
Graphics Core Count: 2
Graphics Frequency: 2200MHz
USB Type-C DisplayPort Alternate Mode: Yes
Thermals and Cooling
Max Operating Temperature Tjmax: 95C
Thermal Solution PIB: Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Supported Technologies
AMD EXPO Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen Master Support: Yes
Supported Technologies: AMD EXPO Technology, AMD Ryzen Technologies
OS Support
OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Product IDs
Product ID Boxed: 100-100001084WOF
Product ID Tray: 100-000001084
